Overview

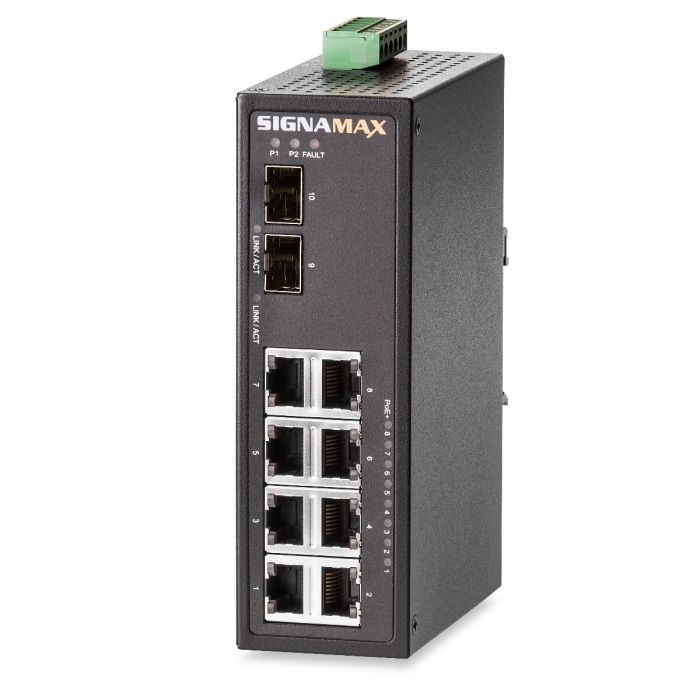

The Signamax 8-Port Industrial PoE+ Switch is designed for high-performance network connectivity in demanding environments. This unmanaged switch provides eight 10/100/1000Base-T/TX ports with Power over Ethernet (PoE+) capabilities, complemented by two 100/1000Base SFP slots for flexible fiber uplink options.
Engineered for rugged durability, the unit features an IP30-rated metal housing capable of withstanding extreme temperatures ranging from -40°F to 167°F (-40°C to 75°C). Its industrial design includes built-in DIN-rail mounting, making it an ideal choice for factory automation, intelligent transportation systems, and outdoor security surveillance deployments requiring reliable PoE+ power.
Key Features
-
PoE+ Support
Delivers up to 30 watts per port, enabling power for Pan/Tilt/Zoom (PTZ) IP security cameras and other high-draw devices. -
Rugged Design
Features an IP30-rated all-metal enclosure that protects internal components in harsh industrial environments. -
Wide Operating Temperature
Functions reliably in extreme environments from -40°C to 75°C (-40°F to 167°F). -
Redundant Power Input
Equipped with a dual 48-55 V DC terminal block input to ensure continuous operation in the event of power supply failure. -
Jumbo Frame Support
Supports up to 9.6K bytes jumbo frames to optimize network performance for large data transmissions. -
High Capacity MAC Table
Features an 8K MAC address capacity for efficient traffic management in busy network segments. -
Integrated Protection
Provides 2,000 V DC power line EFT protection and 6,000 V DC Ethernet ESD protection for enhanced electrical safety.
Applications
- Industrial Automation and Control
- IP Surveillance and Security Systems
- Outdoor Data Center Backhaul
- Intelligent Transportation Networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | 065-7410GPOEP |
| Copper Ports | 8 x 10/100/1000Base-T/TX |
| Fiber Uplink Ports | 2 x 100/1000Base SFP |
| PoE Standard | PoE+ (up to 30W per port) |
| MAC Table | 8K |
| Jumbo Frames | 9.6K bytes |
| Operating Temp | -40°C to 75°C (-40°F to 167°F) |
| Power Input | Redundant 48-55 V DC terminal block |
| Housing | IP30 Metal |
| Mounting | DIN-Rail |
Frequently Asked Questions
Does this switch require managed configuration?
No, this is an unmanaged switch designed for plug-and-play installation.
What is the maximum PoE power output?
It supports PoE+ (PSE), which provides up to 30 watts per port.
Is the power input redundant?
Yes, it features a redundant 48-55 V DC terminal block power input.
Can this switch be used outdoors?
It is designed for rugged industrial environments with a wide operating temperature range; however, it must be installed within an appropriate NEMA-rated enclosure if exposed to direct weather.
What mounting options are available?
The unit comes with built-in DIN-rail mounting hardware.
