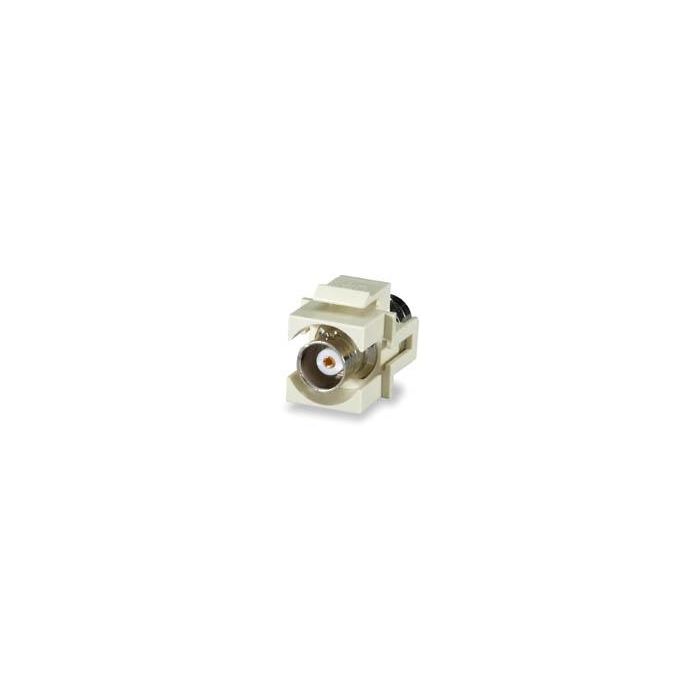

Signamax BNC Feed Thru Keystone Module White

Overview

The Signamax BNC Feed-Thru Keystone Module is designed for integration into modular networking environments. It provides a simple, reliable feed-thru connection for BNC cabling, facilitating easy transitions in structured cabling layouts. This module is engineered to snap directly into standard keystone faceplates and surface-mount boxes, allowing for rapid deployment in data, video, and security installations.

Designed for durability and versatility, the white module maintains a clean appearance in wall-mount or rack-mount faceplate configurations. Its feed-thru design eliminates the need for field termination on the module itself, ensuring consistent signal path continuity in professional network environments.

Key Features

• Feed-Thru Design
  Features a standard BNC female-to-female interface, providing a plug-and-play connection that reduces installation time.
• Keystone Compatibility
  Compatible with all standard Signamax keystone faceplates and surface-mount boxes for flexible system design.
• Color-Coded Option
  Supports the use of color-coded icon tabs to easily identify specific network lines or cable types.
• Versatile Mounting
  Designed to fit modular wall outlets and patching environments, ensuring a tidy and professional cable management solution.
• Durable Housing
  Constructed with high-quality materials to provide a secure and stable fit within faceplates.
• Dust Cover Support
  Allows for the attachment of dust covers to protect unused ports from environmental contaminants.

Applications

• CCTV and video surveillance systems
• Broadband video distribution
• Broadcast audio/video networking
• Modular wall outlet configurations

Technical Specifications

Frequently Asked Questions

Is this module compatible with non-Signamax faceplates?
This module is designed for standard keystone apertures; however, it is specifically optimized for Signamax keystone faceplates and surface-mount boxes.

Does this require any special tools for installation?
No, this is a feed-thru style module that simply snaps into place in a compatible keystone plate.

Can I use this for high-definition video signals?
The module is designed as a BNC feed-thru. Performance depends on the quality and bandwidth requirements of the specific video signal being transmitted.

Are dust covers included?
Dust covers are not included with the module; however, the module is designed to support them if needed.

Is this available in other colors?
This specific part number (CMKBNCWH) is for the white version. Please check the catalog for other color options if available.
