Overview

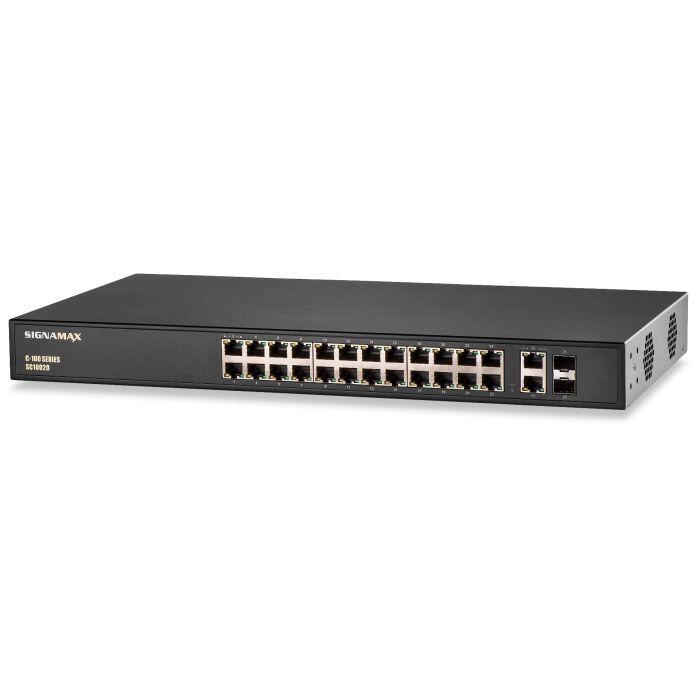

The Signamax C-100 Series 24-Port Fast Ethernet Switch is a robust, unmanaged networking solution engineered to provide reliable connectivity for small to medium-sized business networks. Designed for high-density environments, this unit enables efficient network expansion through its 24 Fast Ethernet ports combined with 2 Gigabit SFP uplink interfaces, allowing for high-bandwidth integration into larger network backbones.
Equipped with Power over Ethernet Plus (PoE+) capabilities across all ports, this switch delivers up to 385W of total PoE power. This makes it an ideal choice for powering IP surveillance cameras, VoIP phones, and wireless access points without the need for additional power injectors. Housed in a durable metal chassis with integrated mounting brackets, it is built for long-term use in standard 19-inch racks.
Key Features
-
Plug and Play Connectivity
Zero-touch installation allows for immediate network deployment without complex software configuration. -
PoE+ Support
Provides power delivery to connected network devices on all ports, eliminating the need for localized power sources. -
High Power Budget
Features a 385W PoE power budget, supported by a 400W internal power supply for consistent operation. -
Gigabit Uplinks
Includes two 1000/GbE SFP combo ports for high-speed fiber uplink connections to main network switches or servers. -
Rugged Metal Construction
Constructed with a metal housing for enhanced durability and effective heat dissipation in equipment rooms. -
Rack-Mount Ready
Integrated mounting brackets simplify installation into standard server racks or cabinets.
Applications
- IP Camera and Surveillance Systems
- VoIP Telephone Networks
- Wireless Access Point Deployment
- Small Business Network Expansion
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | SC10020 |
| Switch Type | Unmanaged |
| Ethernet Ports | 24 Port 10/100 Base T/TX (RJ45) |
| Uplink Ports | 2 x 1000/GbE SFP Combo Ports |
| PoE Standard | PoE+ |
| Total PoE Budget | 385W |
| Power Supply | 400W Internal |
| Housing Material | Metal |
Frequently Asked Questions
Does this switch require configuration?
No, the C-100 series is a plug-and-play unmanaged switch that requires no setup.
Can I use this switch for fiber uplinks?
Yes, it includes two SFP combo ports that support Gigabit fiber uplinks.
How much PoE power can it provide?
The switch offers a total PoE power budget of 385W.
What is the rack compatibility?
It includes integrated mounting brackets specifically designed for 19-inch rack installations.
Is the power supply internal?
Yes, it contains a 400W internal power supply.
