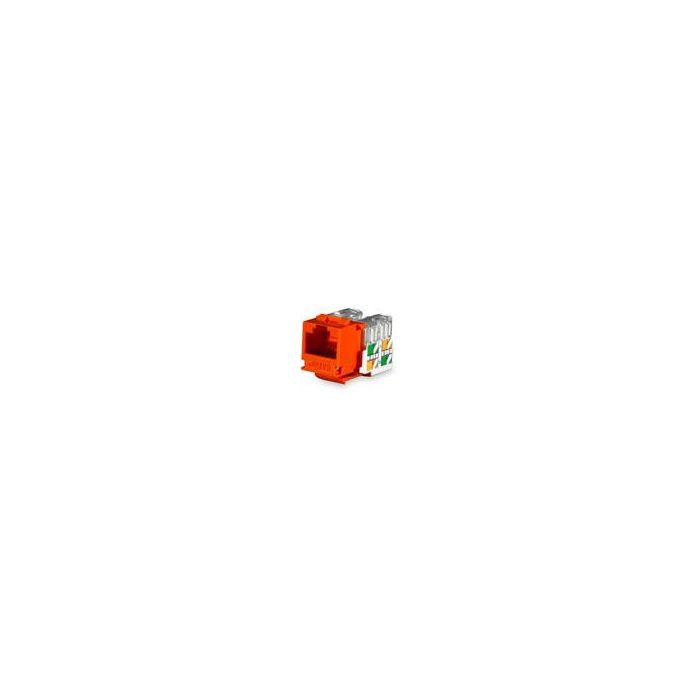

Signamax Cat5 MT-Series High-Density Keystone Jack Orange

Overview

The Signamax Category 5e MT-Series Unscreened Keystone Jacks are engineered to support modern high-bandwidth network environments. Featuring a slim, high-density profile, these jacks are optimized for space-constrained installations while maintaining robust connectivity performance.

Designed for reliability, these connectors incorporate advanced contact geometry to ensure integrity during plug-to-jack insertion and protection against damage from 4- or 6-position plugs. These jacks are suitable for standard networking infrastructure and are compatible with various snap-in patch panels and work area faceplates.

Key Features

• TIA-568-C.2 Compliance
  Exceeds component performance standards and supports 100-meter channel performance for Category 5e.
• High-Density Design
  Slim profile allows for increased port density in patch panels and wall plates.
• 110-Type Termination
  Rear 110-type contacts improve wire retention and simplify the installation process.
• Flexible Tooling
  Compatible with standard 110 single-position tools or Signamax four-pair termination tools.
• Enhanced Contact Integrity
  Contact design protects against damage during insertion of 4- or 6-position plugs.
• System Longevity
  Rated for a minimum of 750 plug insertions for long-term reliability.
• Comprehensive Kit
  Includes circuit identification icons, dust covers, and 110 protection caps.
• Visual Wiring Guide
  Features an easy-to-read T568A/B color-coded wiring label.

Applications

• High-density enterprise network patching
• Local Area Network (LAN) infrastructure
• Work area wall outlet termination
• Category 5e voice and data distribution

Package Contents

• Keystone Jack
• Circuit identification icons
• Dust covers
• 110 protection caps

Technical Specifications

Frequently Asked Questions

Are these jacks compatible with standard patch panels?
Yes, they are compatible with Signamax screened snap-in patch panels and work area faceplates.

Can I use a standard 110 tool for termination?
Yes, these jacks are designed to be terminated with either a standard 110 single-position tool or the Signamax four-pair tool.

Does this kit include dust protection?
Yes, the kit includes dust covers for unused jacks to prevent contamination.

What is the life expectancy of the connection?
The jack is rated for a minimum of 750 plug insertions.

Does this jack support T568A and T568B wiring?
Yes, it features an easy-to-read color-coded label for both T568A and T568B wiring schemes.
