Overview

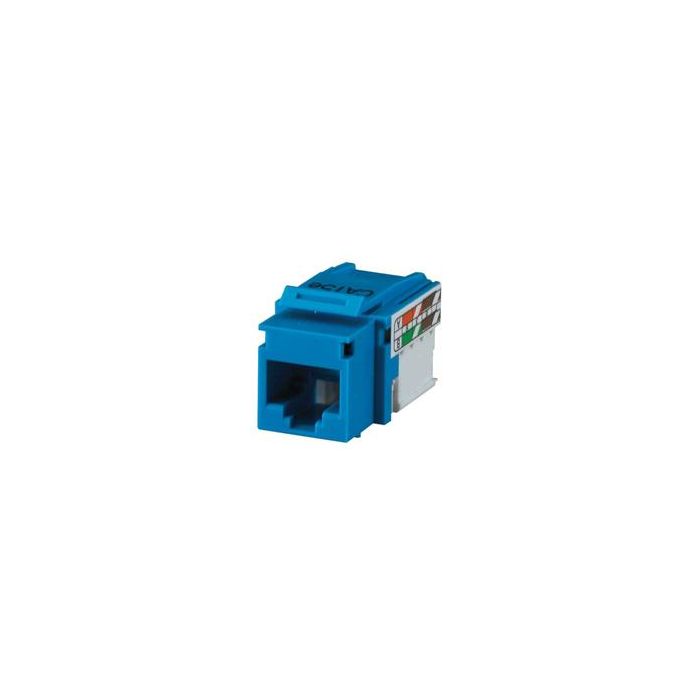

The Signamax Cat5E MT-Series High-Density Keystone Jack is an unscreened connectivity solution engineered to meet the requirements of high-bandwidth network applications. Designed with a slim profile, this jack allows for maximized port density in patch panels and work area environments.
Each unit features rear 110-type contacts that offer improved wire retention and efficient termination. The jack supports both T568A and T568B wiring schemes, with integrated color-coding to simplify installation and ensure consistent performance across 100-meter channel deployments.
Key Features
-
High-Density Design
The slim profile enables increased port density in space-constrained network environments. -
TIA-568-C.2 Compliance
Exceeds industry standards for Category 5e component performance to ensure network integrity. -
Robust Contact Design
Enhanced integrity protects the internal pins from damage during the insertion of 4- or 6-position plugs. -
Efficient Termination
Rear 110-type contacts are compatible with standard 110 single-position tools or Signamax four-pair tools for faster installation. -
Reliable Performance
Rated for a minimum of 750 plug insertion cycles for long-term system stability. -
Comprehensive Kit
Includes circuit identification icons, dust covers, and 110 protection caps to maintain connection health.
Applications
- High-bandwidth data network installations
- Enterprise LAN patch panels
- Work area wall plates and outlets
- General purpose Category 5e cabling systems
Package Contents
- 1 x Cat5E MT-Series Keystone Jack
- Circuit identification icons
- Dust cover
- 110 protection cap
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Category | Cat5e |
| Part Number | KJ458MTC5EBU |
| Termination Type | 110-Type |
| Wiring Standard | T568A / T568B |
| Durability | 750 Plug Insertions |
Frequently Asked Questions
Are these jacks compatible with standard patch panels?
Yes, they are compatible with Signamax screened snap-in patch panels and work area faceplates.
What tool is required to terminate these jacks?
They can be terminated using a standard 110 single-position tool or the Signamax four-pair tool.
Do these jacks come with accessories?
Yes, each kit includes circuit identification icons, dust covers, and 110 protection caps.
Can these be used for 100-meter runs?
Yes, they are rated to support TIA-568-C.2 category 5e 100-meter channel performance.
Is the wiring scheme easy to identify?
Yes, each jack includes an easy-to-read color-coded label for T568A/B wiring.
