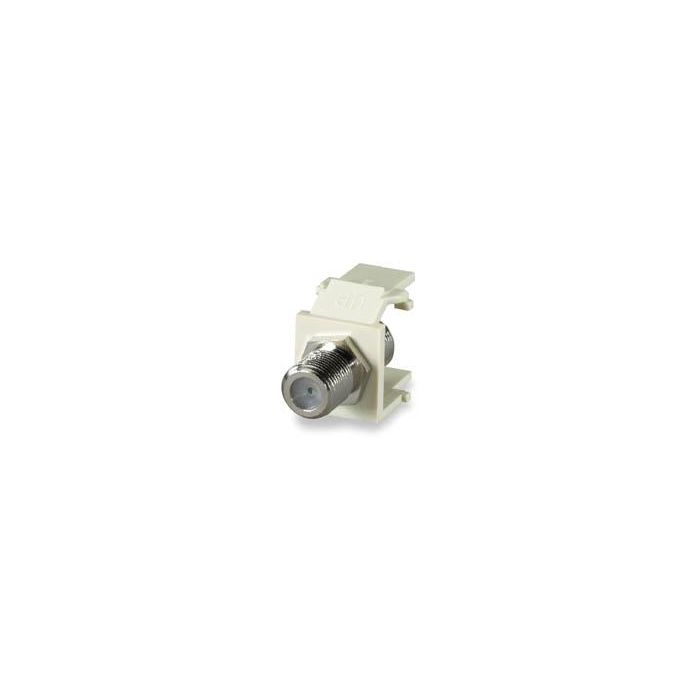

The Signamax F-Feed Thru Keystone Module is a professional-grade connectivity solution designed for residential and commercial video, CATV, and security camera applications. This module allows for seamless integration of coaxial cable systems into standard keystone-compatible faceplates, patch panels, and surface-mount boxes.
Engineered for high-frequency performance, this module features a 75 Ohm design and is available in 1-GHz or 3-GHz rated configurations. Its robust construction utilizes a bronze shell and terminal with a 3/8-32 thread, ensuring secure mechanical and electrical connections for Series 59, 6, and 11 coaxial cabling in structured cabling environments.
Key Features
-
High-Frequency Performance
Available in both 1-GHz and 3-GHz versions to support modern broadband and video signal requirements. -
75 Ohm Impedance
Maintains signal integrity for standard video and CATV applications. -
Bronze Construction
Durable shell and terminal design ensures long-term mechanical stability. -
Standard Threading
Features a 3/8-32 thread for compatibility with industry-standard F-type hardware. -
Keystone Compatibility
Designed for universal integration with all Signamax keystone panels, faceplates, and surface-mount boxes. -
Field Installation
Enables quick, easy, and reliable connections in various network environments.
Applications
- Residential cable television (CATV) services
- Security and surveillance camera systems
- Video distribution networks
- Coaxial structured cabling systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | CMKFBK |
| Connector Type | F-Type Feed-Thru |
| Impedance | 75 Ohm |
| Performance Rating | 1 GHz / 3 GHz |
| Material | Bronze (Shell and Terminal) |
| Thread Size | 3/8-32 |
Frequently Asked Questions
Are these connectors suitable for stranded center conductor cables?
No, F-type connectors rely on the solid center conductor of the cable as the pin and are not compatible with stranded center conductor cables.
Is this module compatible with non-Signamax faceplates?
The module is designed to fit standard keystone-style cutouts, though it is specifically optimized for use with Signamax keystone panels and boxes.
What cable types does this support?
This module supports Series 59, Series 6, and Series 11 coaxial cables.
Do I need special tools for installation?
The keystone module snaps directly into compatible hardware, facilitating quick field installation without specialized termination tools.
Is this module shielded?
The bronze construction provides the necessary mechanical and electrical grounding required for 75 Ohm coaxial applications.
