Overview

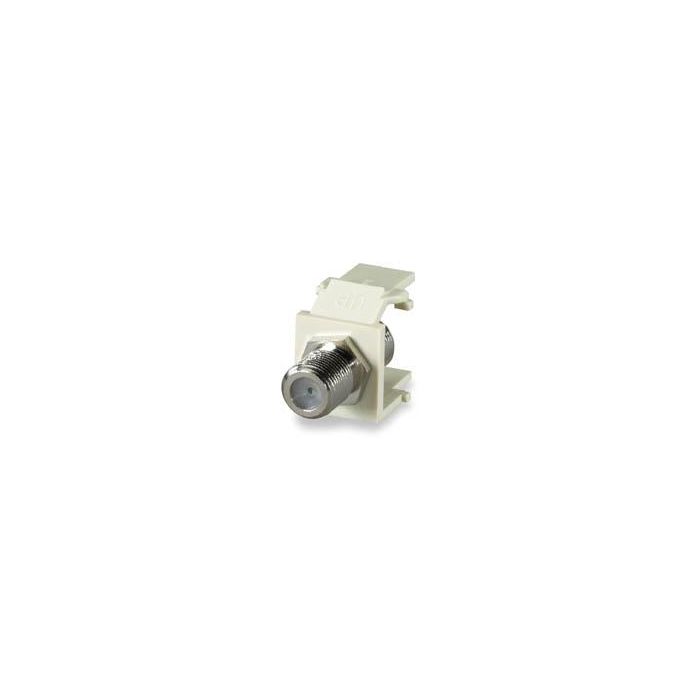

The Signamax F-Feed Thru Keystone Module provides a reliable interface for connecting Series 59, Series 6, and Series 11 coaxial cables. Designed for seamless integration into video, CATV, and security camera systems, this module utilizes a robust 75-Ohm construction to ensure signal integrity across residential and commercial network environments.
The module features a standard 3/8-32 thread and is engineered for quick, tool-less installation into compatible keystone panels, faceplates, and surface-mount boxes. By using the solid center conductor of the coaxial cable as the pin, this feed-thru design maintains a cost-effective yet high-performance connection suitable for 1-GHz and 3-GHz applications.
Key Features
-
75-Ohm Impedance
Ensures optimal signal transmission and impedance matching for CATV and video applications. -
F-Type Feed-Thru Design
Uses the cable's solid center conductor as the pin, eliminating the need for additional terminations and reducing overall cost. -
Broad Compatibility
Designed to fit all standard Signamax keystone-compatible faceplates, panels, and surface-mount boxes. -
High-Frequency Performance
Available in versions supporting up to 3-GHz bandwidth for modern broadband requirements. -
Rugged Construction
Features a durable bronze shell and terminal for enhanced mechanical reliability in the field. -
Standard 3/8-32 Threading
Industry-standard thread size allows for quick and secure mounting in standard cutout diameters.
Applications
- CATV and Broadband Distribution
- Residential Cable Service Connections
- Video Surveillance and Security Camera Systems
- Home Theater and Multimedia Networking
- General Coaxial Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | CMKFWH |
| Connector Type | F-Type Feed-Thru |
| Impedance | 75 Ohm |
| Bandwidth | 1-GHz and 3-GHz options |
| Thread Type | 3/8-32 |
| Material | Bronze shell and terminal |
| Color | White |
Frequently Asked Questions
Are these connectors suitable for stranded center conductor cables?
No, these F-type modules are designed for solid center conductor coaxial cables only. The cable's center conductor acts as the signal pin.
What is the thread size for this module?
It features standard 3/8-32 threading.
Are these compatible with non-Signamax faceplates?
The module is designed for all Signamax keystone-compatible panels and faceplates. Compatibility with third-party systems is based on standard keystone sizing.
What is the maximum frequency rating?
The modules are available in both 1-GHz and 3-GHz versions.
Do I need special tools for installation?
No, this is a feed-thru module that snaps into standard keystone cutouts, allowing for quick, easy field installation.
