Overview

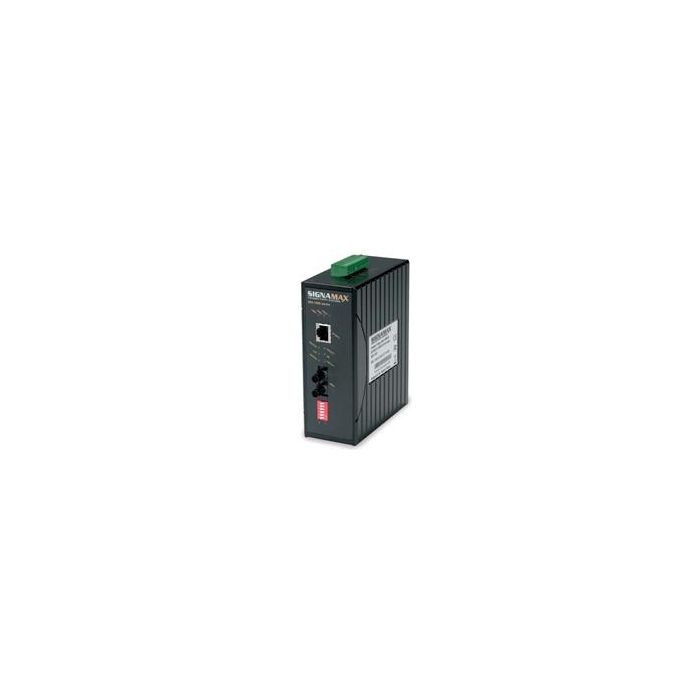

The Signamax Hardened 10/100Base-T/TX to 100Base-FX media converter is engineered for high-performance data transmission in demanding industrial environments. Designed to facilitate seamless integration between copper-based Ethernet networks and fiber optic cabling, this unit ensures reliable connectivity in environments where standard networking equipment would fail due to temperature or interference.
Built for resilience, the device is housed in a rugged enclosure suitable for harsh conditions, including roadside traffic control systems, manufacturing shop floors, and outdoor installations. It supports a wide operating temperature range and is built to maintain full wire-speed performance through a non-blocking, store-and-forward switching mechanism.
Key Features
-
Industrial Hardened Design
Meets NEMA TS1 environmental requirements for traffic control equipment and operates in extreme temperatures ranging from -40°F to 165°F. -
Hazardous Location Certification
UL 1604 Class 1, Division 2 classified, ensuring safe deployment in sensitive industrial areas. -
Advanced Port Configuration
RJ-45 port features auto-negotiation for 10/100Mbps, full/half-duplex mode, and auto-MDIX for simplified installation. -
Multimode Fiber Support
Equipped with an ST connector for 100Base-FX fiber links, supporting distances up to 2 km. -
DIP Switch Configuration
Allows for precise control over link fault signaling, link down alarms, and speed/duplex settings. -
Redundant Power Inputs
Features a redundant 24V DC terminal block power input to maximize system uptime. -
Diagnostic Alarms
Includes relay output alarms for monitoring power failure and port link status. -
Electromagnetic Compatibility
Meets IEC61000-6-2 EMC generic standards for industrial environment immunity.
Applications
- Outdoor roadside transportation and traffic control systems
- Industrial manufacturing shop floors
- Remote industrial facility monitoring
- Harsh environments requiring temperature-hardened networking
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | 0651800ATB |
| Operating Temperature | -40°C to 74°C (-40°F to 165°F) |
| Compliance | NEMA TS1, IEC61000-6-2, UL 1604 Class 1 Div 2 |
| Copper Port | RJ-45 (Auto-Negotiation, Auto-MDIX) |
| Fiber Port | 100Base-FX (ST connector) |
| Fiber Reach | 2 km (Multimode) |
| Mounting | DIN-Rail or Panel Mount |
| MAC Addresses | 2K |
Frequently Asked Questions
What is the operating temperature range?
The unit is designed to operate between -40°F and 165°F (-40°C to 74°C).
Does this unit support DIN-rail mounting?
Yes, it supports both DIN-Rail and panel mount installations.
Is this unit suitable for hazardous locations?
Yes, it is UL 1604 Class 1, Division 2 classified.
What type of power input is required?
The device utilizes redundant 24V DC terminal block power inputs.
Does it have a warranty?
Yes, this media converter includes a lifetime warranty.
