Overview

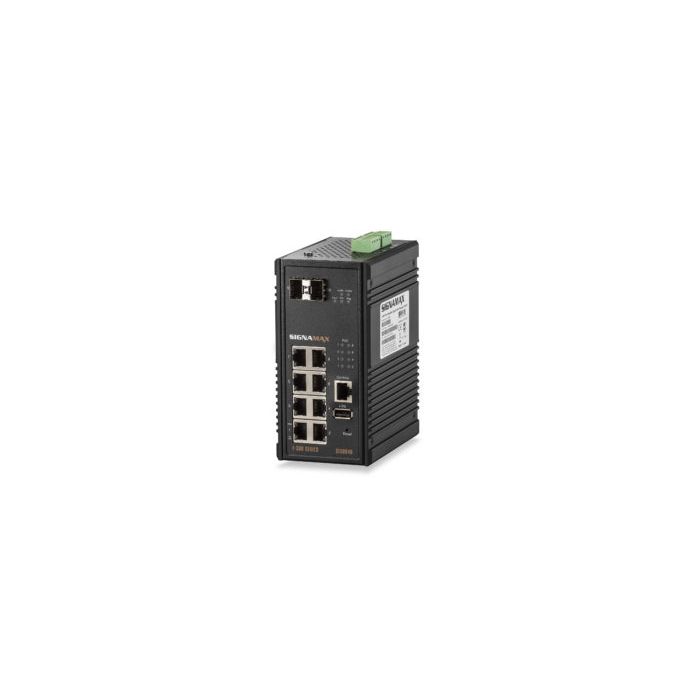

The Signamax I-300 Series is a high-performance managed industrial switch engineered for reliability in extreme industrial and outdoor environments. This 8-port switch supports PoE+ connectivity, providing robust power delivery for remote devices while maintaining seamless data integration through its dual Gigabit SFP ports.
Constructed within a rugged IP30-rated enclosure, this device is designed to withstand harsh operating conditions, including high shock, vibration, and extreme temperature variations. With its advanced layer 2 management features and redundant power inputs, it ensures high network availability for critical industrial infrastructure.
Key Features
-
Industrial IP30 Enclosure
Ruggedized housing protects internal components against environmental debris in industrial installations. -
Wide Operating Temperature
Capable of functioning in environments ranging from -40 to 75 °C (-40 to 167 °F). -
PoE+ Power Delivery
Features 8 PoE+ ports providing up to 240 watts of power for IP cameras, wireless access points, or VoIP phones. -
High-Speed Uplinks
Includes 2 Gigabit SFP ports for flexible, high-bandwidth fiber optic connectivity. -
Fast Recovery Times
Supports ERPSv2 technology for 20ms network disconnection recovery. -
Redundant Power Inputs
Dual DC terminal block inputs with reverse polarity and overload protection ensure continuous operation. -
Surge Protection
Integrated 4kV LAN surge protection guards against electrical transients in outdoor settings. -
USB Management Port
Allows for convenient configuration backup, system restore, and firmware upgrades.
Applications
- Industrial automation networks
- Outdoor surveillance systems
- Intelligent transportation systems
- Utility and energy infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | I-300 Series |
| Part Number | SI30040 |
| RJ45 Ports | 8 x 10/100/1000Base-T/TX |
| SFP Ports | 2 x 1000Base-X |
| PoE Budget | 240 Watts |
| Switching Bandwidth | 20 Gbps |
| Enclosure Rating | IP30 |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Surge Protection | 4kV LAN |
| Mounting Options | DIN-Rail, Wall Mount |
| Warranty | 5 Year Hardware Warranty |
Frequently Asked Questions
Does this switch support redundancy?
Yes, the switch supports redundant ring technology with 20ms healing times using ERPSv2.
Can this be mounted on a DIN-Rail?
Yes, it features an integrated DIN-Rail mounting option.
Is the power input protected?
Yes, it includes redundant DC terminal block inputs with overload and reverse polarity protection.
What is the maximum PoE budget?
The switch provides up to 240 watts of PoE+ power.
Is there a way to backup configurations?
Yes, the switch includes a USB port specifically for image/configuration backup, restore, and upgrades.
