Overview

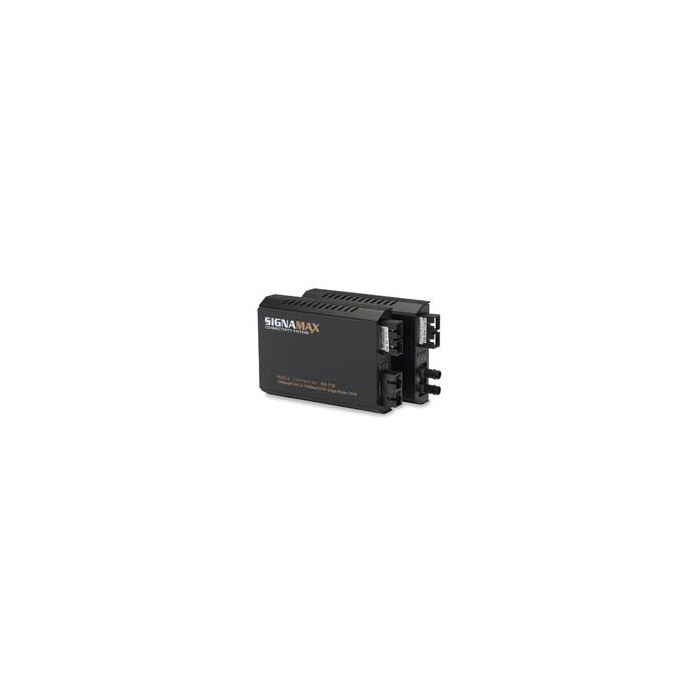

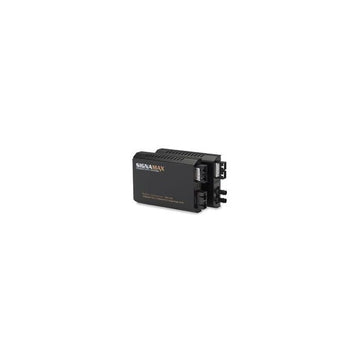

The Signamax 10/100 to 100FX Media Converter is designed to bridge the gap between copper and fiber infrastructure, providing a robust solution for extending network reach in data centers and industrial environments. This unit converts 10/100Base-TX Ethernet signals to 100Base-FX fiber, ensuring high-speed data transmission over multimode fiber at distances up to 2km.
Featuring integrated Link Fault Signaling (LFS) technology, this converter enhances network reliability by allowing managed switches to recognize fiber or copper connection failures immediately. The device's built-in store-and-forward switch architecture supports network segmentation, permitting full-duplex fiber operation even when connected to half-duplex copper hubs.
Key Features
-
Link Fault Signaling (LFS)
Enables connected managed switches to identify link failures, supporting automated failover to backup paths. -
Integrated 10/100 Switch
Uses store-and-forward architecture to ensure data integrity and seamless protocol conversion between copper and fiber segments. -
Versatile Mounting Options
Supports wall mounting, DIN-rail mounting, or integration into a rack mount media converter chassis for flexible installation. -
Dual-Mode Connectivity
Fiber connections can operate in full-duplex mode regardless of whether the connected copper port is full or half-duplex. -
DIP Switch Configuration
Provides granular control over link fault signaling, fiber auto/force modes, and SFP speed settings. -
Visual Diagnostics
Integrated LED indicators provide real-time status updates for power, link, and data activity.
Applications
- Data center copper-to-fiber uplink conversion
- Industrial network distance extension
- Managed network failover and redundancy
- Campus-wide network connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651174 |
| Interface A | 10/100Base-TX (RJ-45) |
| Interface B | 100Base-FX (LC) |
| Fiber Type | Multimode |
| Maximum Distance | 2km |
| Operating Mode | Store-and-forward |
| Warranty | Limited Lifetime |
Frequently Asked Questions
What is the maximum fiber distance for this unit?
This model is specified for multimode fiber applications up to 2km.
Does this unit support rack mounting?
Yes, it supports wall mounting, DIN-rail mounting, or installation into a standard media converter rack mount chassis.
Can I use this with a half-duplex hub?
Yes, the built-in switch architecture allows the fiber side to operate in full-duplex mode even when the copper port is connected to a half-duplex hub.
What is the purpose of the DIP switches?
They allow for configuration of link fault signaling, fiber auto/force modes, and SFP speed.
Does this converter work with managed switches?
Yes, the Link Fault Signaling (LFS) feature allows managed switches to detect link drops and utilize Spanning Tree Algorithms to maintain network uptime.
