Overview

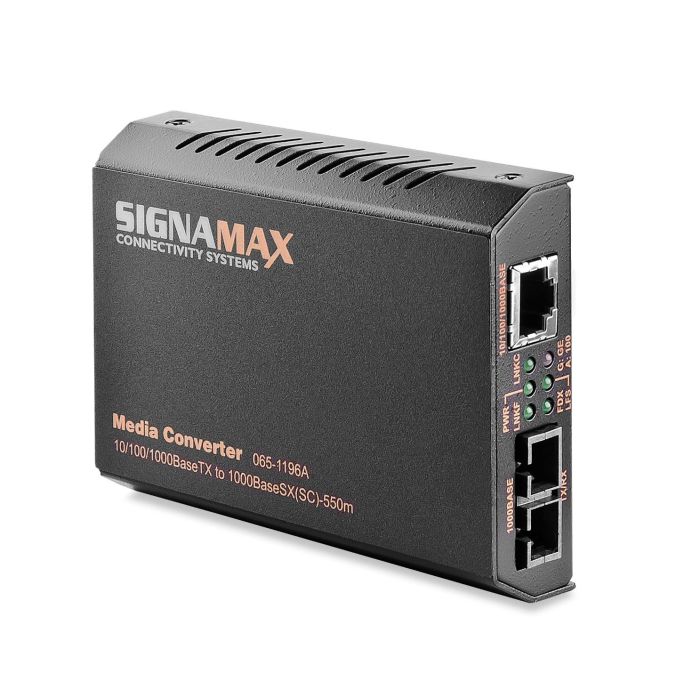

The Signamax Media Converter is an intelligent networking solution designed to seamlessly bridge legacy 10/100Base-TX copper networks with high-speed 1000Base Gigabit Ethernet fiber backbones. This device ensures reliable long-distance data transmission by providing a full-featured switching architecture that supports mixed-speed environments.
Engineered for mission-critical reliability, this converter features an MTBF (Mean Time Between Failures) exceeding 112 years and utilizes low-latency switching to facilitate efficient multi-hop network performance. It is physically adaptable for various installation requirements, including wall-mount, DIN-rail, or standard rack-mount chassis deployment.
Key Features
-
Low-Latency Architecture
Ensures high-speed data throughput for complex, multi-hop network configurations. -
Gigabit Jumbo Frame Support
Supports 9K bytes frames for improved efficiency in high-bandwidth data transfers. -
Flexible Configuration
Features DIP switches for manual control of Link Fault Signaling, fiber modes, and SFP speed. -
Flow Control
Implements IEEE 802.3x for full-duplex and back-pressure for half-duplex operations. -
High-Reliability Design
Provides an MTBF rating of over 112 years for consistent, long-term operation. -
Versatile Mounting
Supports multiple installation methods including wall mounting, DIN-rail, or centralized rack-mount chassis.
Applications
- Industrial Ethernet connectivity
- Campus network backbone extensions
- Data center fiber uplink integration
- Legacy copper network modernization
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651196A |
| Copper Port | 10/100/1000Base-T/TX |
| Fiber Port | 1000Base-SX |
| Connector Type | SC |
| Fiber Compatibility | Multimode |
| Transmission Distance (62.5um) | 220 Meters |
| Transmission Distance (50um) | 550 Meters |
| MTBF | > 112 years |
Frequently Asked Questions
Does this unit support jumbo frames?
Yes, it supports 9K bytes jumbo frames for optimized Gigabit transmission.
Can I mount this in a rack?
Yes, the converter is compatible with dedicated Signamax media converter rack-mount chassis.
How is the Link Fault Signaling configured?
It is controlled via integrated physical DIP switches on the unit.
What is the maximum fiber distance for 62.5um multimode cable?
The device supports up to 220 meters using 62.5um fiber.
Is this device compatible with legacy 10Base-T networks?
Yes, the built-in switch allows connectivity between 10/100Base-T legacy networks and 1000Base fiber infrastructure.
