Overview

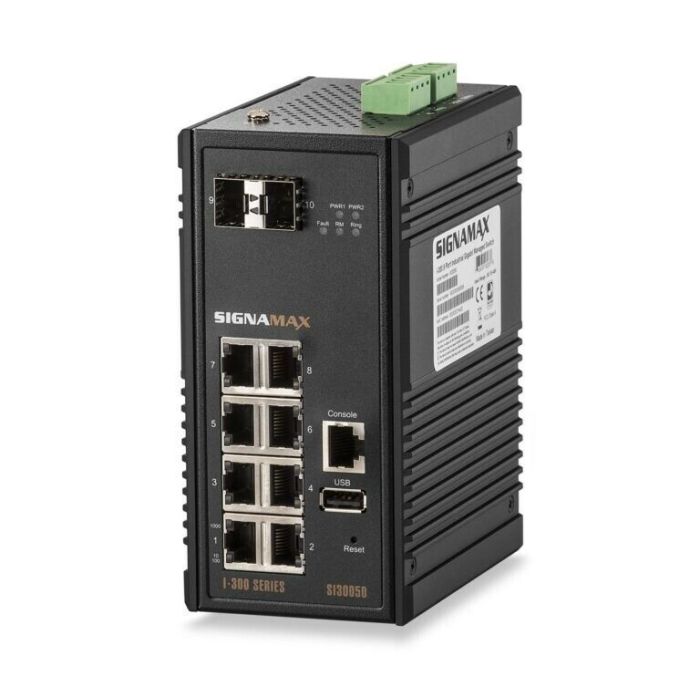

The Signamax I-300 Series Managed Industrial Switches are designed for the extreme environments typically found in industrial and outdoor applications. These switches provide a secure, high-availability, Layer 2 networking solution for demanding industrial settings.
Housed in rugged IP30-rated enclosures, the I-300 series is engineered to withstand extreme shock and vibration. These switches feature a non-blocking architecture with 20Gbps bandwidth support and integrate advanced redundancy technologies, including ERPSv2, to ensure 20ms disconnection recovery time for fault-tolerant operation.
Key Features
-
Rugged IP30 Enclosure
Features a durable metal housing with integrated DIN-Rail and wall mounting options for secure industrial installation. -
Wide Operating Temperature
Designed for performance in harsh conditions, rated for operation from -40 to 167 °F (-40 to 75 °C). -
Surge Protection
Equipped with 4kV LAN surge protection to safeguard equipment in extreme outdoor environments. -
Redundant Power Inputs
Utilizes redundant terminal block DC inputs with integrated overload and reverse polarity protection. -
Layer 2 Managed Switching
Provides a secure and reliable managed Layer 2 environment for industrial network control. -
High Bandwidth Performance
Operates as a non-blocking switch capable of 20Gbps total bandwidth support. -
Fast Recovery Times
Supports ERPSv2 technology to enable rapid 20ms network recovery during fiber path disconnections. -
Gigabit Connectivity
Includes 2 Gigabit SFP ports for flexible fiber optic uplink integration. -
USB Management Port
Features a dedicated USB port for easy configuration backups, image restores, and firmware upgrades. -
Extended Warranty
Includes a 5-year hardware warranty and technical support at no additional cost.
Applications
- Industrial automation networks
- Outdoor security and surveillance systems
- Traffic management and ITS infrastructure
- Harsh-environment manufacturing plants
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | I-300 Series |
| Part Number | SI30050 |
| RJ45 Ports | 8-Port (10/100/1000 Base T/TX) |
| SFP Ports | 2-Port (1000/GbE) |
| Switching Capacity | 20Gbps (Non-Blocking) |
| Enclosure Rating | IP30 |
| Operating Temperature | -40 to 167 °F (-40 to 75 °C) |
| Surge Protection | 4kV LAN |
| Warranty | 5 Year Hardware |
Frequently Asked Questions
Does this switch support DIN-rail mounting?
Yes, the switch comes in a rugged IP30 enclosure designed with integrated options for both DIN-Rail and wall mounting.
What is the operating temperature range?
It is rated for harsh environments with an operating range of -40 to 167 °F (-40 to 75 °C).
Is the power input redundant?
Yes, the unit supports redundant terminal block DC inputs and includes overload and reverse polarity protection.
What is the recovery time for network failure?
Using ERPSv2 technology, the switch supports a 20ms disconnection recovery time.
What is the purpose of the USB port?
The integrated USB port is designed for configuration/image backups, restoration, and firmware upgrades.
