Overview

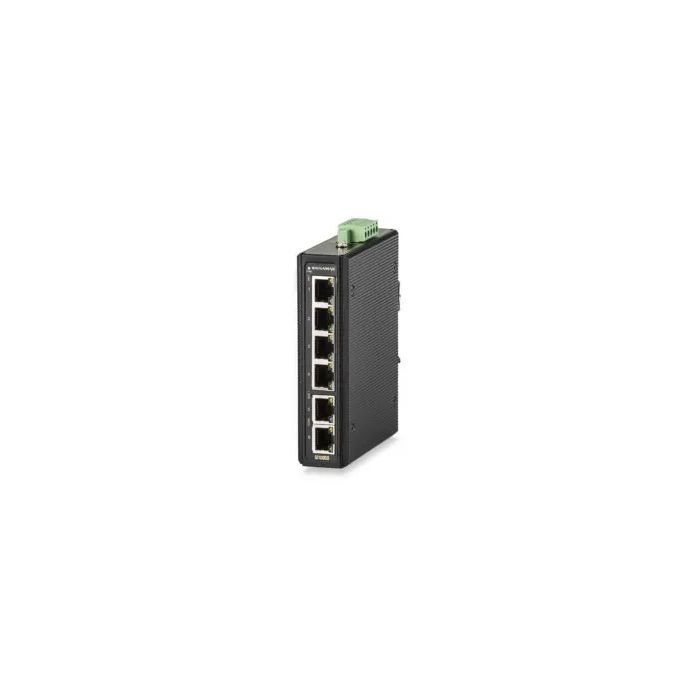

The Signamax I-100 Series industrial switches are designed to provide a cost-effective and resilient networking solution for operations in demanding environments. This unmanaged switch is engineered for use in industrial and outdoor applications where protection against electromagnetic interference and extreme temperatures is critical.
Housed in a rugged IP40-rated enclosure, the device includes an integrated DIN-Rail mounting bracket for efficient installation in control cabinets. It offers robust connectivity with both PoE+ support and non-blocking bandwidth capabilities, ensuring consistent performance for mission-critical industrial hardware.
Key Features
-
Rugged IP40 Enclosure
Features a durable industrial-grade housing with an integrated DIN-Rail mount for secure installation in harsh environments. -
Wide Operating Temperature
Capable of functioning in environments ranging from -40 to 167 °F (-40 to 75 °C), making it suitable for outdoor use. -
Integrated Surge Protection
Includes 4kV LAN surge protection to safeguard internal components against electrical spikes in exposed outdoor deployments. -
PoE+ Capability
Equipped with 4 PoE+ ports providing up to 120 watts of power to connected peripheral devices. -
Non-Blocking Switching
Features a high-bandwidth design supporting 1.2Gbps throughput to ensure zero data packet loss. -
Redundant Power Inputs
Utilizes dual terminal block DC inputs to provide power failover protection for increased network uptime. -
Zero Touch Connectivity
Designed for plug-and-play operation, allowing for rapid deployment without complex configuration requirements.
Applications
- Industrial automation and control networks
- Outdoor surveillance systems
- Remote telecommunications cabinets
- Factory floor data connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | I-100 Series |
| Part Number | SI10050 |
| Total Ports | 10 Ports |
| PoE+ Ports | 4 Ports |
| Standard Ports | 6 Ports |
| Interface Type | 10/100Base-T/TX (RJ45) |
| Switching Capacity | 1.2 Gbps |
| Enclosure Rating | IP40 |
| Operating Temperature | -40 to 167 °F (-40 to 75 °C) |
| Surge Protection | 4kV LAN |
| Power Protection | Overload and reverse polarity |
| Warranty | 5-Year Hardware |
Frequently Asked Questions
Does this switch require configuration?
No, the unit features zero-touch plug-and-play connectivity for immediate network integration.
Can this be mounted on a DIN rail?
Yes, the unit comes with an integrated DIN-Rail mounting bracket for standard industrial cabinet installation.
What is the maximum PoE power output?
The switch provides up to 120 watts of total PoE+ power for connected devices.
Is the unit suitable for outdoor use?
Yes, it is built for extreme environments with an IP40 rugged enclosure, wide temperature tolerance, and surge protection.
What type of power inputs does it support?
The switch supports redundant terminal block DC inputs to prevent failure during power source issues.
