Overview

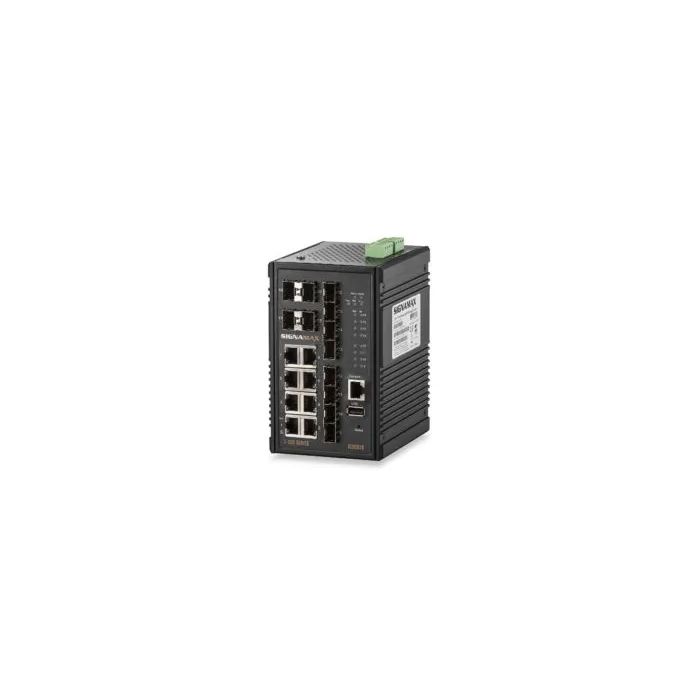

The Signamax I-300 Series Managed Industrial Switch is engineered for mission-critical reliability in extreme environments. This layer 2 managed switch is specifically designed for industrial automation and outdoor infrastructure, providing high-availability networking in challenging conditions.
Constructed with a rugged IP30-rated enclosure, the unit features advanced surge protection and supports a wide operating temperature range of -40 to 75 °C. The switch utilizes redundant DC terminal block inputs and comprehensive ring technology to ensure network stability and fast fault recovery, making it an ideal choice for data-intensive industrial applications.
Key Features
-
Rugged Design
Features an IP30-rated enclosure with DIN-rail and wall mounting capability for flexible installation in industrial cabinets. -
Wide Operating Temperature
Certified for operation from -40 to 75 °C (-40 to 167 °F), suitable for outdoor or non-climate-controlled environments. -
Surge Protection
Integrated 4kV LAN surge protection protects sensitive electronics against electrical transients in outdoor settings. -
Redundant Power
Dual DC terminal block inputs with reverse polarity and overload protection ensure continuous operation during power faults. -
High-Speed Switching
Non-blocking design with 40Gbps bandwidth capacity to support high-throughput industrial traffic. -
Fast Recovery
ERPSv2 support delivers a 20ms disconnection recovery time for fault-tolerant network topologies. -
Media Flexibility
Equipped with 8 100/1000 SFP downstream ports and 4 1000/GbE uplink SFP ports for versatile fiber connectivity. -
USB Management
Dedicated USB port facilitates configuration backups, restores, and seamless firmware upgrades.
Applications
- Industrial Automation and Control Systems
- Outdoor Surveillance and Security Networks
- Power Utility Infrastructure
- Transportation and Traffic Control Systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model Series | I-300 Series |
| Part Number | SI30010 |
| Enclosure Rating | IP30 |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Surge Protection | 4kV LAN |
| Switching Capacity | 40 Gbps |
| Downstream Ports | 8 x 100/1000 SFP |
| Uplink Ports | 4 x 1000/GbE SFP |
| Recovery Time | 20ms (ERPSv2) |
| Warranty | 5 Years |
Frequently Asked Questions
What is the operating temperature range?
The switch is rated for -40 to 75 °C (-40 to 167 °F).
What is the recovery time for network failure?
It supports ERPSv2 technology with a 20ms disconnection recovery time.
How is this switch mounted?
It features an integrated design for either DIN-rail or wall mounting.
Are the power inputs redundant?
Yes, it includes redundant terminal block DC inputs with reverse polarity protection.
What is the warranty period?
This device includes a 5-year hardware warranty.
