Overview

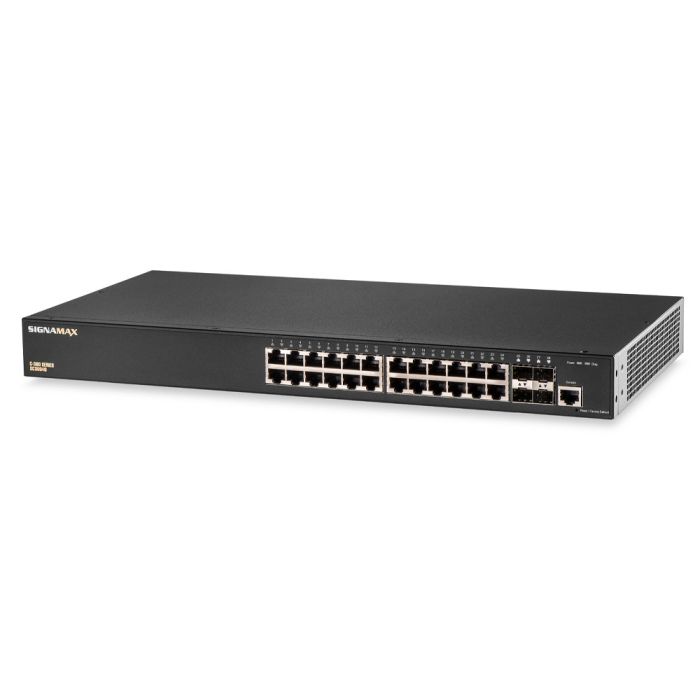

The Signamax C-300 Series is a robust, fully managed network switch designed to provide comprehensive Layer 2 switching capabilities for campus and branch office environments. It features 24 Gigabit Ethernet ports for high-density copper connectivity and four dedicated SFP uplink ports for flexible, high-speed fiber connectivity.
Engineered for versatility, this switch supports advanced features such as access security, access control lists (ACLs), and traffic prioritization. Its fanless design ensures silent operation, making it suitable for noise-sensitive deployments. The unit is optimized for quick installation and simplified management via an intuitive administrative dashboard, maintaining enterprise-grade flexibility and power.
Key Features
-
24-Port Gigabit Connectivity
Features 24 copper RJ45 ports for high-bandwidth local area network connections. -
4 SFP Uplink Interfaces
Provides four dedicated fiber ports to enable long-distance backbone connectivity. -
Full Layer 2 Management
Offers comprehensive control over network traffic for enhanced reliability and segmentation. -
Fanless Silent Operation
Eliminates noise by utilizing passive cooling, ideal for office or quiet working environments. -
Advanced QoS Queues
Includes 8 dedicated Quality of Service queues to prioritize critical data traffic. -
Static IP and RIP Routing
Supports basic routing functions to assist in network management and traffic routing. -
Integrated Rack Mounting
Includes factory-integrated brackets designed for immediate installation in standard server racks. -
Security Features
Equipped with enhanced access security and ACL support to protect sensitive network infrastructure.
Applications
- Campus network distribution
- Branch office local area networking
- High-density enterprise connectivity
- Noise-sensitive data environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | C-300 |
| Part Number | SC30040 |
| RJ45 Ports | 24 (10/100/1000 Base T/TX) |
| SFP Ports | 4 (1000/GbE) |
| Management Type | Fully Managed |
| Layer Support | Layer 2 |
| Cooling | Fanless (Silent) |
Frequently Asked Questions
Does this switch support fiber connectivity?
Yes, it features 4 dedicated 1000/GbE SFP ports for fiber uplinks.
Is this switch loud during operation?
No, it utilizes a fanless design for silent operation.
Can this be mounted in a server rack?
Yes, the switch comes with integrated mounting brackets specifically for rack installation.
What level of management does this device offer?
It is a fully managed switch that offers Layer 2 capabilities, including QoS and ACLs.
What is the maximum speed of the RJ45 ports?
The RJ45 ports support speeds up to 1000 Mbps (Gigabit).
