Overview

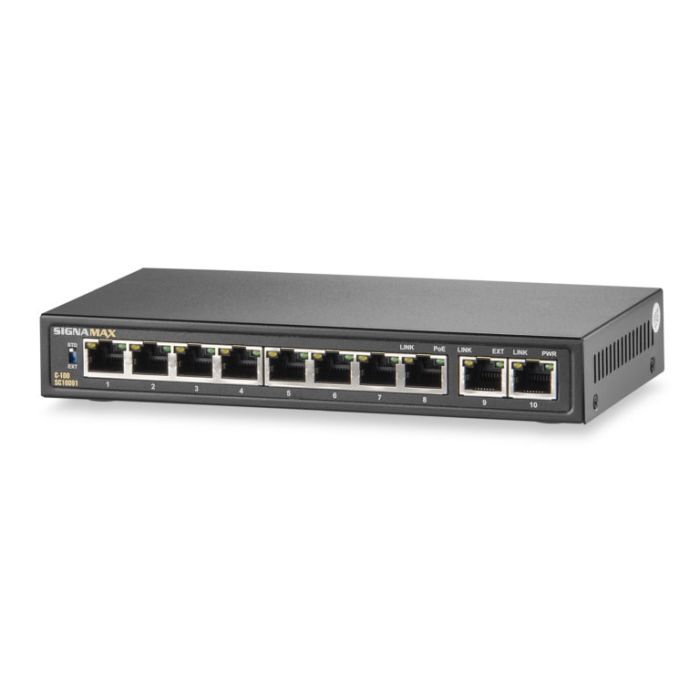

The Signamax SC10091 is an 8-port Fast Ethernet switch designed for high-performance network connectivity in demanding environments. This switch features Power over Ethernet Plus (PoE+) capabilities, allowing it to deliver both data and electrical power over a single Ethernet cable to compatible devices such as IP cameras, VoIP phones, and wireless access points.
Built for efficiency, this unit provides a streamlined solution for expanding network infrastructure without the need for additional power outlets at the device location. Its compact design and robust architecture make it suitable for a variety of professional and industrial networking applications, ensuring consistent data transmission and reliable power delivery.
Key Features
-
8-Port Fast Ethernet
Provides eight 10/100 Mbps RJ45 ports for high-speed local network connectivity. -
PoE+ Integration
Supports IEEE 802.3at power standards to supply high-wattage power directly through Ethernet cabling. -
Extended Transmission Range
Supports data and power transmission up to 250 meters, facilitating deployment in large facilities. -
Plug-and-Play Installation
Features a simplified setup process that requires no complex configuration for rapid deployment. -
Compact Form Factor
Engineered for space-constrained environments where footprint is a primary concern. -
Integrated Power Management
Efficiently manages power distribution to connected peripherals to prevent overloading.
Applications
- IP Surveillance Systems
- VoIP Telephony Networks
- Wireless Access Point Deployment
- Small to Medium Business Network Expansion
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | SC10091 |
| Port Count | 8 Port |
| Data Rate | Fast Ethernet (10/100 Mbps) |
| PoE Standard | PoE+ (IEEE 802.3at) |
| Max Transmission Distance | 250m |
Frequently Asked Questions
Does this switch support standard PoE devices?
Yes, the switch is compliant with IEEE 802.3at standards and is backward compatible with 802.3af devices.
Can I use this switch for Gigabit speeds?
No, this model is specifically designed for Fast Ethernet (10/100 Mbps) connectivity.
What is the maximum reach for power and data?
The switch supports extended transmission up to 250 meters.
Is this a managed or unmanaged switch?
This is an unmanaged, plug-and-play switch designed for simple, immediate connectivity.
Does it require any specific software configuration?
No, it is a hardware-based solution requiring no software setup.
