Overview

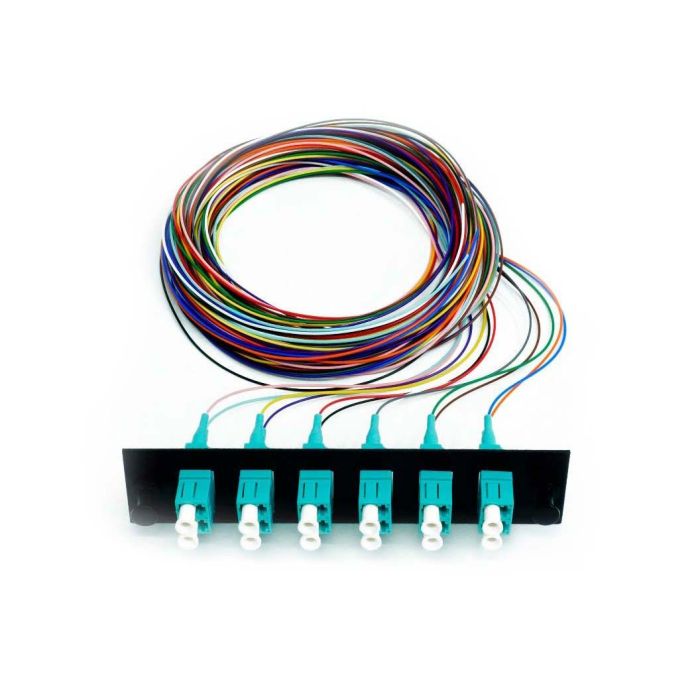

The Snap Pack is a pre-terminated fiber optic adapter plate designed for seamless integration into fiber distribution frames. By combining an LGX-compatible adapter plate with factory-installed pigtails, this solution simplifies installation for technicians working in high-density environments. It is ideal for data centers, telecommunications rooms, and enterprise network cross-connects.
Each unit features high-quality 50um OM3 multimode fiber, managed by color-coded 900um tight buffered fibers and protected by flexible spiral wrap tubing for enhanced durability during routing. The assembly is engineered to provide low insertion loss and reliable signal integrity for sensitive optical networks.
Key Features
-
Pre-Terminated Design
Factory-terminated pigtails reduce on-site splicing time and labor costs. -
LGX Compatibility
Standardized plate format ensures compatibility with common fiber distribution enclosures. -
OM3 Multimode Fiber
Optimized for 10 Gigabit applications, supporting high-speed data transmission. -
Spiral Wrap Protection
Flexible tubing secures individual fibers and prevents tangling or damage during cable management. -
Color-Coded Buffering
Standard TIA color-coded 900um fibers simplify identification and port mapping. -
Low Insertion Loss
Maximum 0.4dB insertion loss ensures efficient power budget management.
Applications
- Data Center Cross-Connects
- Fiber Distribution Frames
- Enterprise Network Cabinets
- Telecommunications Central Offices
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fibers |
| Fiber Mode | Multimode 50um OM3 |
| Connector Type | Duplex SC/PC |
| Cable Length | 3 Meters |
| Plate Color | Black |
| Insertion Loss | 0.4dB Max |
| Buffer Size | 900um |
Frequently Asked Questions
Are the pigtails color-coded?
Yes, the fibers are color-coded in accordance with industry standards (Blue, Orange, Green, Brown, Slate, White) to ensure easy identification.
Is the adapter plate LGX compatible?
Yes, the assembly is designed to fit standard LGX-style distribution frames and enclosures.
Can I order different lengths?
Yes, custom configurations including varying pigtail lengths, fiber types, and connector styles are available upon request.
What is the maximum insertion loss?
The typical maximum insertion loss for this assembly is 0.4dB.
Is the protective wrap removable?
Yes, the flexible spiral wrap is designed to be easily removed or adjusted during the cable management process.
