Overview

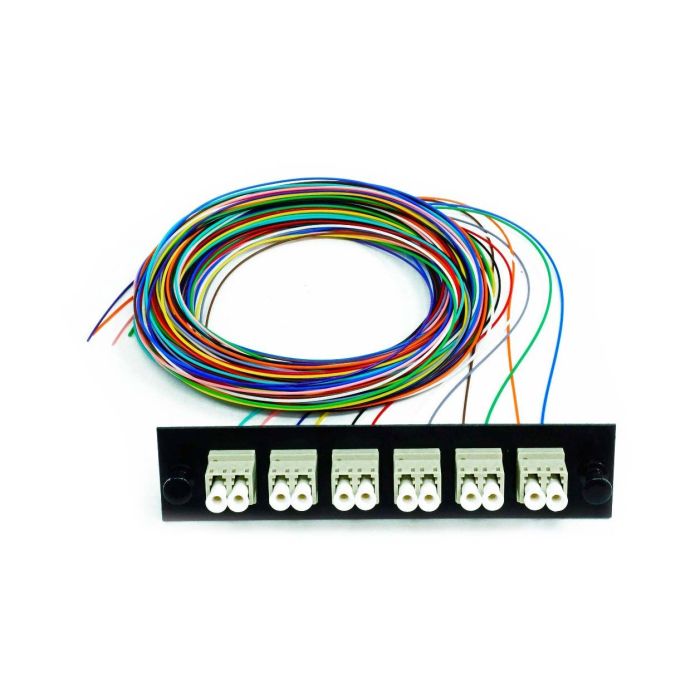

The Snap Pack adapter plate is a pre-terminated fiber management solution designed for seamless integration into fiber distribution frames. By combining an LGX-compatible adapter plate with factory-installed pigtails, this unit provides a ready-to-use termination point that saves technicians significant time during installation in data center and network environments.
Each unit features 12 multimode 62.5um OM1 fibers, pre-terminated with LC/PC connectors. To ensure fiber protection and simplified cable management, the pigtails are organized within a flexible, removable spiral wrap tubing. Built using high-quality Corning fiber, these assemblies are engineered for consistent optical performance in professional networking applications.
Key Features
-
Pre-Terminated Design
Factory-loaded adapter plates allow for immediate deployment, reducing onsite splicing time. -
Corning Fiber Construction
Utilizes genuine 900um tight-buffered Corning fiber for maximum signal integrity. -
LC/PC Connectivity
Features high-precision LC/PC duplex connectors with black boots for standard network compatibility. -
Organized Cable Management
Flexible spiral wrap protects the 12 fibers and ensures easy routing within the enclosure. -
Low Insertion Loss
Engineered with a typical maximum insertion loss of 0.4dB to minimize optical power degradation. -
LGX Compatibility
Standard LGX form factor ensures compatibility with a wide range of existing rack-mount and wall-mount enclosures.
Applications
- Data Center cross-connects
- Telecommunications distribution frames
- Enterprise network patching
- Fiber optic rack and wall-mount enclosures
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1LC6DLM50SPNBLK |
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | LC/PC Duplex |
| Plate Color | Black |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Buffer Size | 900um |
Frequently Asked Questions
Are these Snap Packs compatible with standard LGX enclosures?
Yes, they are designed to fit standard LGX adapter plate footprints.
What is the maximum insertion loss for these assemblies?
The typical maximum insertion loss is 0.4dB.
Is the fiber managed in a bundle?
Yes, the fibers are protected by a flexible spiral wrap tubing.
What color is the adapter plate?
This specific model features a black adapter plate.
Can I order custom lengths or configurations?
Yes, custom Snap Packs with varying lengths, fiber types, or connector configurations can be ordered.
