Overview

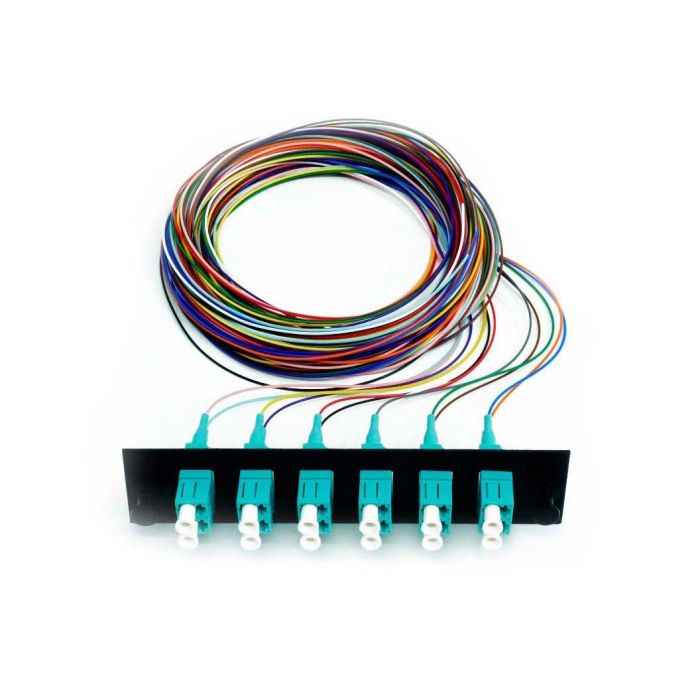

The Snap Pack is a pre-terminated fiber optic solution designed to provide rapid deployment for technicians splicing into fiber distribution frames. By integrating factory-terminated pigtails into a standard LGX adapter plate, this assembly streamlines installation and reduces time spent on-site during fiber termination tasks.
This unit features 12-fiber connectivity utilizing high-quality 62.5um OM1 multimode fiber. The pigtails are protected by a flexible, easily removable spiral wrap tubing, ensuring organization and protection during cable routing. This system is intended for use in indoor fiber management environments, such as data centers or telecommunication closets.
Key Features
-
Pre-Terminated Design
Factory-terminated pigtails eliminate the need for field polishing, ensuring consistent signal quality. -
LGX Compatibility
Standardized plate format allows for seamless integration into existing LGX fiber distribution frames. -
OM1 Multimode Fiber
62.5um core fiber supports legacy networking requirements for multimode applications. -
Color-Coded Fiber
Internal 900um buffered fibers are color-coded (Blue, Orange, Green, Brown, Slate, White) for easy identification during splicing. -
Spiral Wrap Protection
Flexible tubing manages and protects delicate fiber strands from mechanical stress. -
Low Insertion Loss
Typical insertion loss of 0.4dB (max) ensures efficient signal transmission across connections.
Applications
- Fiber distribution frames
- Data center cross-connects
- Telecommunications equipment rooms
- Network patching and termination
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fibers |
| Fiber Type | Multimode 62.5um OM1 |
| Connector Type | Duplex SC/PC |
| Cable Length | 3 Meters |
| Plate Type | LGX Adapter Plate |
| Plate Color | Black |
| Insertion Loss | 0.4dB (max) |
Frequently Asked Questions
Are these Snap Packs available in different fiber types?
Yes, custom configurations are available. Please contact us for requirements involving different pigtail lengths, fiber types, or connector styles.
What color is the adapter plate?
This specific unit includes a black adapter plate.
What is the fiber buffer size?
The unit uses Corning® 900um tight buffered fiber.
Can I get a different plate color?
Adapter plates are generally available in black or off-white.
Is the pigtail protected?
Yes, the fibers are managed within a flexible, removable spiral wrap tubing for protection.
