Overview

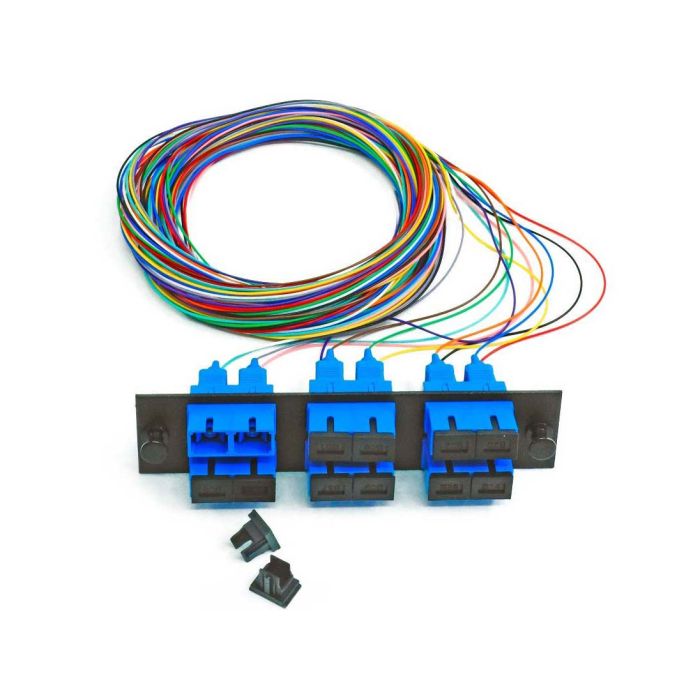

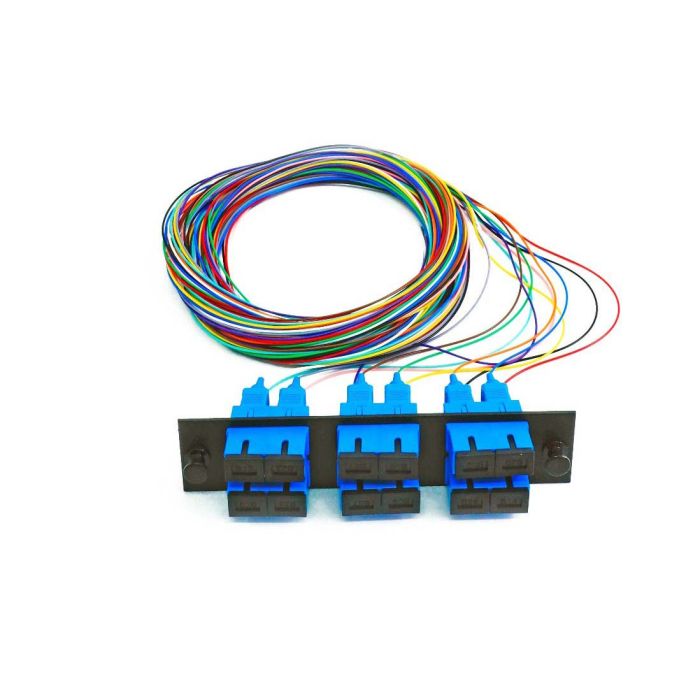

The Snap Pack is a pre-terminated adapter plate designed to streamline the installation process for technicians working in fiber distribution frames. By providing a ready-to-use solution, it eliminates the need for field termination, significantly reducing deployment time and potential for installation error.
Constructed with an LGX-compatible adapter plate and featuring high-quality Corning tight-buffered fiber, this unit is engineered for reliable signal integrity. The 12-fiber configuration includes color-coded 900μm pigtails, which are kept organized and protected by integrated flexible spiral wrap tubing. It is ideal for data center and telecommunications environments requiring rapid, organized fiber deployments.
Key Features
-
Pre-Terminated Design
Factory-terminated connectors ensure consistent performance and reduce on-site labor requirements. -
LGX Compatibility
Standardized footprint allows for seamless integration into existing rack-mount and wall-mount fiber enclosures. -
Corning Fiber
Utilizes industry-standard fiber to ensure optimal signal transmission and long-term network reliability. -
Color-Coded Pigtails
Identifiable fiber strands (Blue, Orange, Green, Brown, Slate, White) simplify cable management and identification during installation. -
Spiral Wrap Protection
Flexible tubing protects delicate 900μm fibers from snagging or damage within the enclosure. -
Low Insertion Loss
Typical insertion loss of 0.4dB (max) ensures minimal signal degradation across the connection point.
Applications
- Fiber distribution frames
- Data center cross-connects
- Telecommunications central offices
- Network upgrades and rapid fiber deployment
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Mode | Singlemode |
| Connector Type | SC/UPC |
| Adapter Plate Style | LGX |
| Plate Color | Black |
| Fiber Type | 900μm Tight Buffered |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
Frequently Asked Questions
What is the primary benefit of using a Snap Pack?
The primary benefit is reduced installation time and complexity. Because the unit is pre-terminated and pre-loaded, technicians can simply install the plate and begin splicing rather than manually terminating each fiber strand.
Are these adapter plates compatible with standard LGX enclosures?
Yes, the Snap Pack is built using the standard LGX adapter plate footprint, making it compatible with most standard rack-mount and wall-mount enclosures.
What color are the fiber pigtails?
The 12-fiber set utilizes standard color coding: Blue, Orange, Green, Brown, Slate, and White.
What is the maximum insertion loss for these units?
The typical insertion loss is 0.4dB maximum.
Can I order these with different lengths or connector types?
Yes, custom configurations including varying pigtail lengths, fiber types, and connector types are available via build-to-order requests.
