Overview

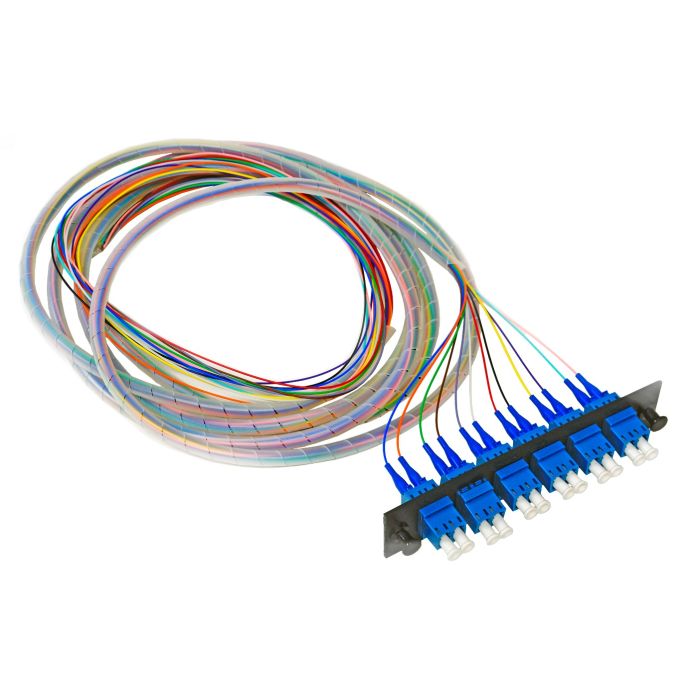

The Snap Pack is a pre-terminated fiber optic adapter plate designed for seamless integration into fiber distribution frames. This assembly streamlines the deployment process for network technicians by providing a ready-to-install solution that eliminates the need for extensive field termination.
Each unit features an LGX-compatible black adapter plate pre-loaded with 12 singlemode fibers. The assembly utilizes high-quality Corning 900μm tight-buffered fiber and is protected by a flexible, easily removable spiral wrap to ensure fiber integrity during installation and maintenance within data centers and communication facilities.
Key Features
-
Pre-Terminated Design
Factory-terminated pigtails allow for rapid installation and reduced labor time. -
LGX Compatibility
Standardized plate footprint ensures compatibility with industry-standard fiber distribution frames. -
High-Quality Fiber
Constructed using Corning 900μm tight-buffered fiber for consistent transmission performance. -
Protected Cabling
Fibers are managed within a flexible spiral wrap tubing to provide organizational support and physical protection. -
Precision Connectors
Features LC/UPC connectors with blue boots, ensuring low insertion loss and reliable signal integrity. -
Color-Coded Management
Pigtails are color-coded (Blue, Orange, Green, Brown, Slate, White) to simplify identification and routing during splicing.
Applications
- Fiber Distribution Frames (FDF)
- Data Center Rack Enclosures
- Central Office Fiber Management
- Enterprise Network Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode |
| Connector Type | LC/UPC |
| Plate Color | Black |
| Cable Length | 3 Meters |
| Fiber Construction | 900μm Tight Buffered (Corning) |
| Typical Insertion Loss | 0.4dB Max |
Frequently Asked Questions
Are these pigtails customizable?
Yes, custom Snap Packs are available upon request, including variations in pigtail lengths, fiber types, connector types, and plate configurations.
What type of fiber is used?
This product uses Corning 900μm tight-buffered singlemode fiber.
Is the adapter plate color interchangeable?
Yes, these adapter plates are available in both black and off-white colors.
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
What is the purpose of the spiral wrap?
The flexible spiral wrap is used to manage and protect the fibers during installation.
