Overview

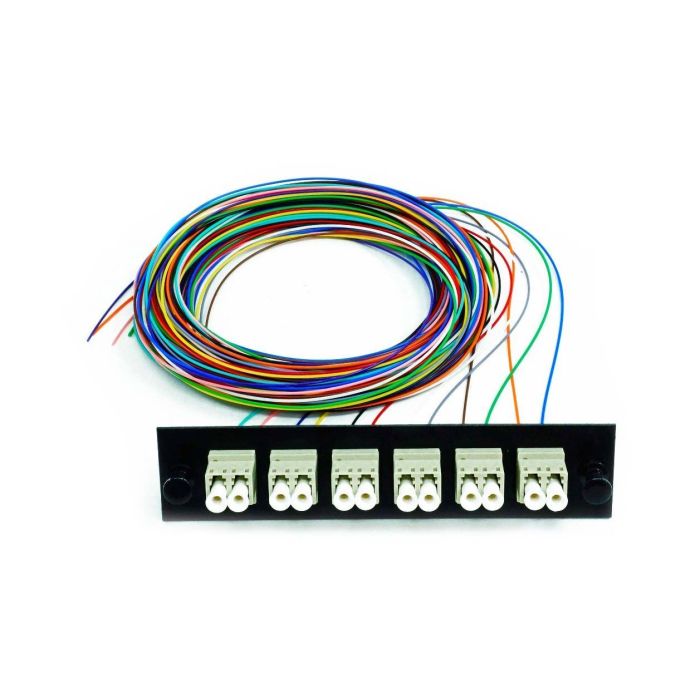

The Snap Pack is a pre-terminated adapter plate assembly designed to streamline fiber optic installation in distribution frames. By integrating high-quality factory-terminated pigtails with a standard LGX adapter plate, this solution significantly reduces on-site labor and termination time for network technicians.
Constructed with Corning® singlemode fiber, the assembly features 24-fiber capacity with Quad LC/APC connectors for high-density patching. The fibers are organized in a 900μm tight-buffered format, protected by a flexible, easily removable spiral wrap to ensure durability and ease of cable management during deployment in data centers and telecommunications environments.
Key Features
-
Pre-Terminated Design
Factory-terminated connectors ensure consistent quality and reduce installation time compared to field termination. -
High-Density Connectivity
Features a 24-fiber configuration using Quad LC/APC adapters for efficient space utilization in patch panels. -
Corning® Fiber
Manufactured using high-grade optical glass for consistent signal transmission and long-term network performance. -
Color-Coded Management
Pigtails are color-coded (Blue, Orange, Green, Brown, Slate, White) to simplify fiber identification and circuit mapping. -
Flexible Spiral Protection
Included spiral wrap protects the fiber bundles while allowing for easy maintenance and routing. -
LGX Compatibility
Designed for use with industry-standard LGX footprint enclosures, ensuring versatile integration into existing infrastructures.
Applications
- Fiber distribution frames
- Data center cross-connects
- Telecommunications head-ends
- Central office fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Singlemode |
| Connector Type | LC/APC (Quad) |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Buffer Size | 900μm Tight Buffered |
| Plate Color | Off-White |
Frequently Asked Questions
Are custom configurations available?
Yes, custom Snap Packs can be built to order with varying pigtail lengths, fiber types, connector types, or plate configurations.
What is the maximum insertion loss for these pigtails?
The typical maximum insertion loss is 0.4dB.
Are these compatible with standard rack enclosures?
Yes, these utilize an LGX-compatible adapter plate footprint.
What colors are used for fiber identification?
The 6-fiber color sequence is Blue, Orange, Green, Brown, Slate, and White.
What fiber brand is used?
These are manufactured with genuine Corning® fiber.
