Overview

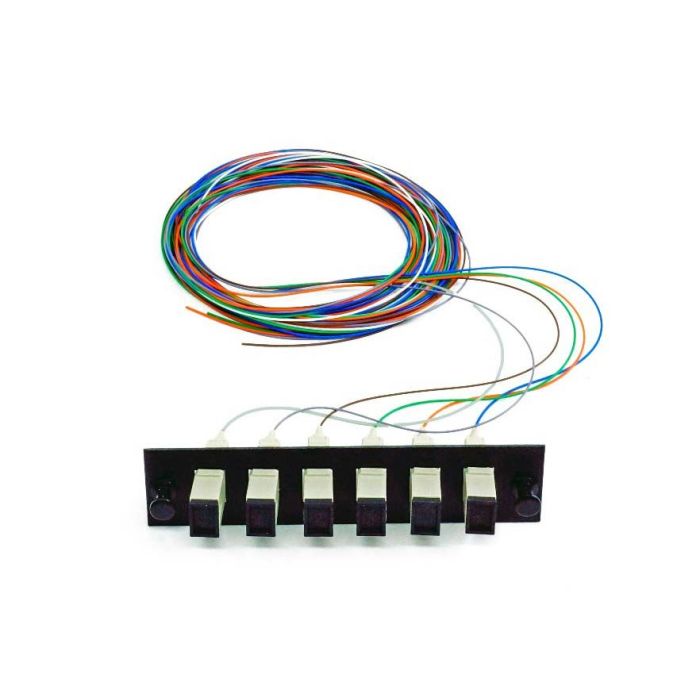

The Snap Pack adapter plate is designed to provide pre-terminated convenience for technicians performing fiber splicing in distribution frames. This unit utilizes an LGX-style adapter plate, pre-loaded with high-quality pigtails to streamline installation and reduce field termination time.
Constructed for professional fiber management, this assembly features 900um tight-buffered fiber for enhanced durability. To ensure protection and ease of handling during the splicing process, the fibers are managed within a flexible, removable spiral wrap tubing. The unit is optimized for indoor fiber distribution environments.
Key Features
-
Pre-Terminated Convenience
Factory-terminated pigtails allow for rapid deployment and reduced labor time during installation. -
Standardized LGX Interface
Uses the industry-standard LGX footprint for broad compatibility with existing fiber distribution frames. -
900um Tight Buffered Fiber
Utilizes Corning glass for consistent optical performance and robustness during handling. -
Flexible Spiral Wrap
Provides protection for the fiber pigtails while allowing for easy, tool-free access and management. -
Color-Coded Fibers
Fibers are color-coded to industry standards (Blue, Orange, Green, Brown, Slate, White) to prevent miswiring. -
Optimized Insertion Loss
Features a maximum typical insertion loss of 0.4dB for high-integrity signal transmission.
Applications
- Fiber Distribution Frames
- Data Center Cross-Connects
- Central Office Fiber Management
- Enterprise LAN Networks
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 50um (OM2) |
| Connector Type | SC |
| Pigtail Length | 3 Meters |
| Adapter Plate Color | Black |
| Buffer Size | 900um Tight Buffered |
| Insertion Loss | 0.4dB Max |
Frequently Asked Questions
Is the pigtail length customizable?
Yes, please contact us for custom configurations including varying lengths, different fiber types, or custom connector options.
What colors are the fibers in the 6-fiber pack?
The fibers are color-coded to industry standards: Blue, Orange, Green, Brown, Slate, and White.
Is this plate compatible with standard rack enclosures?
The unit uses a standard LGX adapter plate footprint, making it compatible with most standard fiber distribution enclosures.
What is the purpose of the spiral wrap?
The spiral wrap provides a layer of physical protection to the loose pigtails and helps keep them organized within the distribution frame.
Are these pigtails factory tested?
All pigtails are manufactured and tested to ensure they meet the specified 0.4dB maximum insertion loss.
