Overview
The Snap Pack is a pre-terminated fiber optic adapter plate designed to streamline fiber distribution frame installation. This solution combines a standard LGX-compatible adapter plate with pre-installed pigtails, allowing technicians to achieve rapid, reliable connectivity in network environments.
Engineered for professional data center and enterprise use, the assembly features high-quality 900um tight-buffered fiber. The pigtails are organized and safeguarded by a flexible spiral wrap that ensures durability while remaining easily removable for maintenance or reconfiguration. This configuration is built for standard multimode environments, providing consistent optical performance.
Key Features
-
Pre-Terminated Design
Factory-terminated pigtails integrated into an LGX adapter plate reduce on-site splicing labor. -
Corning Fiber
Constructed using industry-standard 900um tight-buffered fiber for consistent transmission quality. -
Flexible Protection
Included spiral wrap manages and protects the pigtails during routing and installation. -
Low Insertion Loss
Features a maximum insertion loss of 0.4dB for efficient signal integrity. -
Color-Coded Fibers
Standard color coding facilitates easy identification and installation management. -
Standard LGX Form Factor
Compatibility with standard rack-mount fiber enclosures ensures a simple integration into existing infrastructure.
Applications
- Fiber distribution frames
- Data center cable management
- Enterprise LAN/WAN networking
- FTTX installations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1SC6LMSPNBLK |
| Fiber Count | 6 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | SC/PC |
| Plate Style | LGX Adapter Plate |
| Plate Color | Black |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB Max |
Frequently Asked Questions
What does the Snap Pack include?

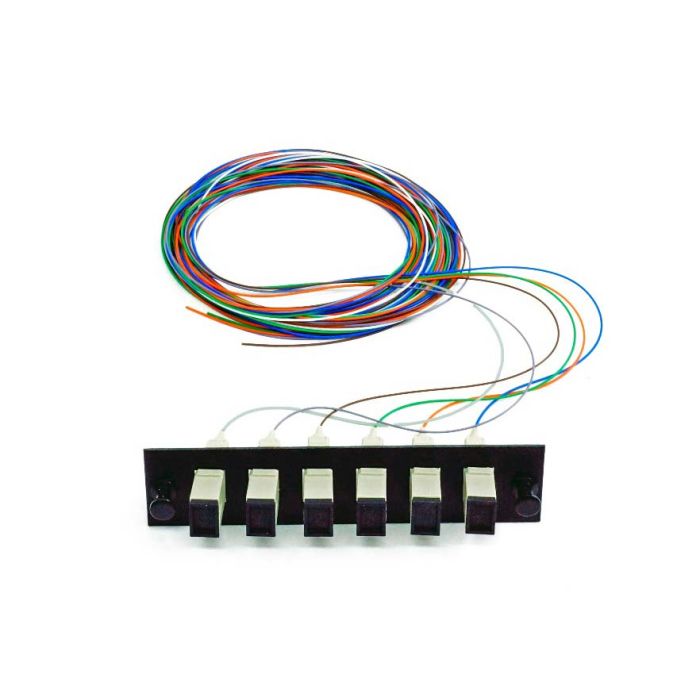

The assembly includes a black LGX adapter plate pre-loaded with 6 color-coded, 3-meter multimode pigtails.
Are custom configurations available?
Yes, custom Snap Packs with varying lengths, connector types, and fiber counts can be built-to-order.
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
Is the fiber color-coded?
Yes, the 6 fiber pigtails use standard color coding (Blue, Orange, Green, Brown, Slate, and White).
What form factor is the plate?
It utilizes the standard LGX footprint for compatibility with most rack-mount fiber enclosures.
