Overview

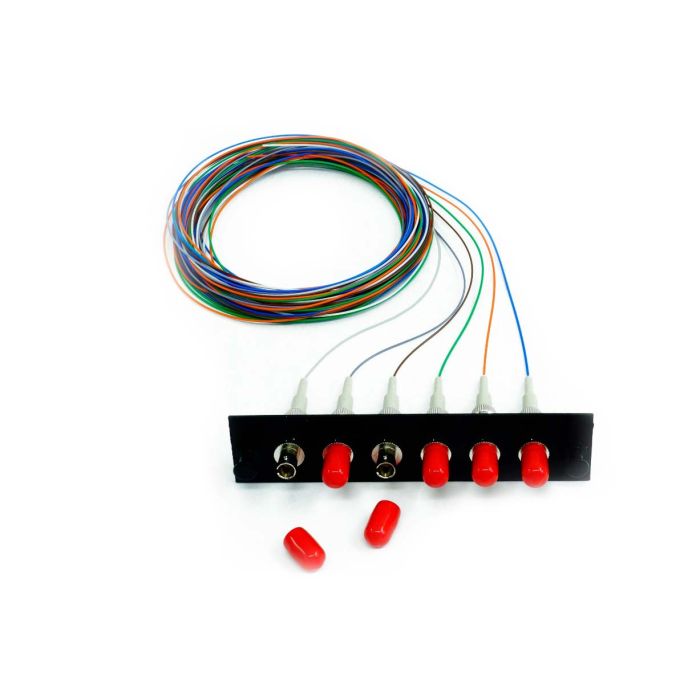

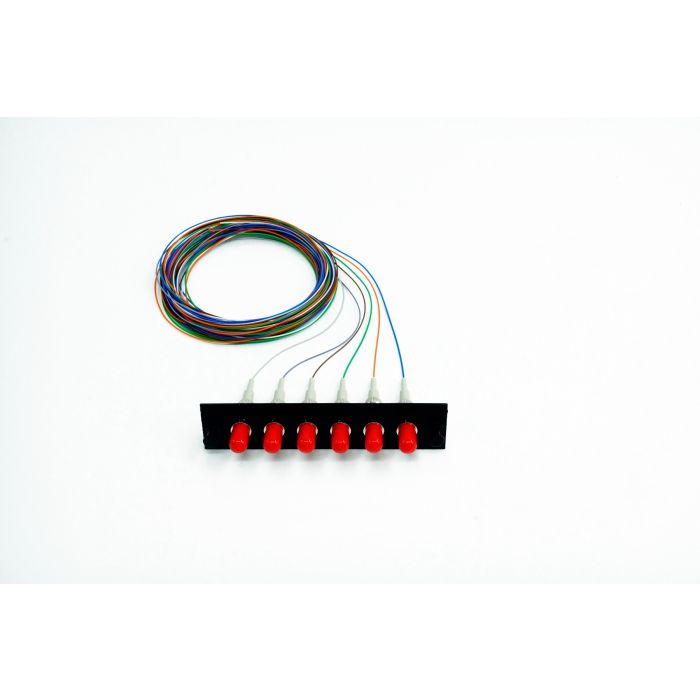

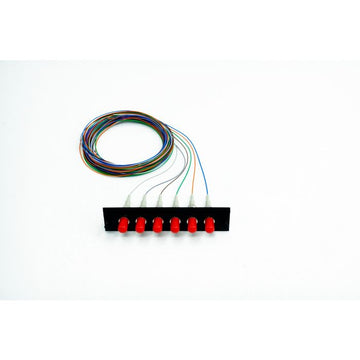

The Snap Pack adapter plate is designed to provide a pre-terminated, ready-to-install solution for technicians working in fiber distribution frames. By combining an LGX-compatible adapter plate with factory-terminated pigtails, this unit significantly reduces field installation time and ensures consistent optical performance in data center and telecommunications environments.
Each unit features high-quality multimode 62.5um OM1 fiber, protected by a flexible spiral wrap for improved cable management and durability. The plate is pre-loaded and ready for rapid integration into existing fiber distribution enclosures, offering a reliable termination point for splicing operations.
Key Features
-
Pre-Terminated Design
Factory-loaded adapter plates save time and reduce the potential for field termination errors. -
LGX Compatibility
Standard LGX footprint ensures seamless integration with most common fiber distribution enclosures and rack-mount panels. -
Corning Fiber
Utilizes 900um tight-buffered fiber from a leading manufacturer to ensure signal integrity and durability. -
Color-Coded Fibers
Standard industry color coding (Blue, Orange, Green, Brown, Slate, White) allows for quick and accurate fiber identification. -
Spiral Wrap Protection
Flexible, removable tubing protects pigtails from damage during installation and maintenance. -
Optical Performance
Factory-controlled termination processes deliver low insertion loss of 0.4dB maximum.
Applications
- Fiber distribution frames
- Data center cross-connects
- Telecommunications network panels
- Central office fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 62.5um OM1 |
| Connector Type | ST/PC |
| Insertion Loss | 0.4dB Max |
| Plate Color | Black |
| Pigtail Length | 3 Meters |
| Buffer Size | 900um Tight Buffered |
Frequently Asked Questions
Are these Snap Packs available in other configurations?
Yes, custom configurations including varying lengths, different fiber types, and connector styles are available upon request.
What is the footprint of this adapter plate?
The plate uses the industry-standard LGX footprint.
What colors are the fibers?
The 6 fibers follow standard coding: Blue, Orange, Green, Brown, Slate, and White.
What type of protection is used for the pigtails?
The pigtails are managed and protected by a flexible, easily removable spiral wrap tubing.
Can the adapter plate color be changed?
Yes, these units are available in either black or off-white.
