Overview

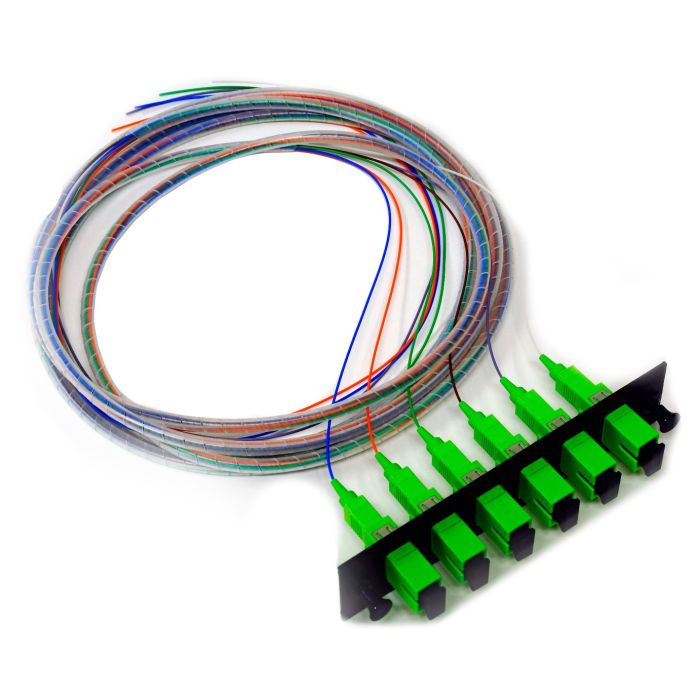

The Snap Pack 6-fiber adapter plate is designed to provide rapid, pre-terminated connectivity for technicians integrating fiber into distribution frames. By combining an LGX-compatible adapter plate with pre-installed fiber pigtails, this solution significantly reduces field installation time and ensures consistent performance.
This unit utilizes high-quality 900μm tight-buffered fiber. The pigtails are managed and protected by flexible spiral wrap tubing, allowing for easy handling and cable routing within crowded racks or enclosures. It is ideal for data centers, telecommunications facilities, and enterprise networking environments where efficient, organized fiber termination is required.
Key Features
-
Pre-Terminated LGX Plate
Features a factory-loaded adapter plate that minimizes on-site termination labor and potential errors. -
6-Fiber Singlemode Configuration
Provides six discrete, color-coded fiber channels to support structured networking applications. -
SC/APC Connectivity
Uses industry-standard SC/APC connectors with green boots to deliver low back reflection for high-performance networks. -
Corning® 900μm Fiber
Constructed using recognized high-grade fiber to ensure signal integrity and compatibility. -
Spiral Wrap Protection
Includes flexible spiral wrap tubing that protects internal fibers while allowing for easy installation and management. -
Low Insertion Loss
Engineered for a typical maximum insertion loss of 0.4dB, maintaining optimal signal transmission.
Applications
- Fiber distribution frames
- Data center cross-connects
- Enterprise network patching
- Telecommunications termination points
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Mode | Singlemode |
| Connector Type | SC/APC |
| Cable Length | 3 Meters |
| Adapter Plate Style | LGX |
| Plate Color | Black |
| Fiber Diameter | 900μm (Tight Buffered) |
| Insertion Loss | 0.4dB (Max) |
Frequently Asked Questions
Are these Snap Packs available in other configurations?
Yes, custom Snap Packs with varying pigtail lengths, fiber types, or connector types can be built to order.
What is the standard pigtail color scheme?
The 6 fibers are color-coded in the standard industry order: Blue, Orange, Green, Brown, Slate, and White.
Is the spiral wrap removable?
Yes, the spiral wrap tubing is designed to be flexible and easily removable for efficient cable management.
What style of adapter plate is used?
These units use standard LGX-compatible adapter plates.
Are the connectors factory polished?
Yes, the pigtails are pre-terminated with SC/APC connectors featuring a factory-applied polish.
