Overview

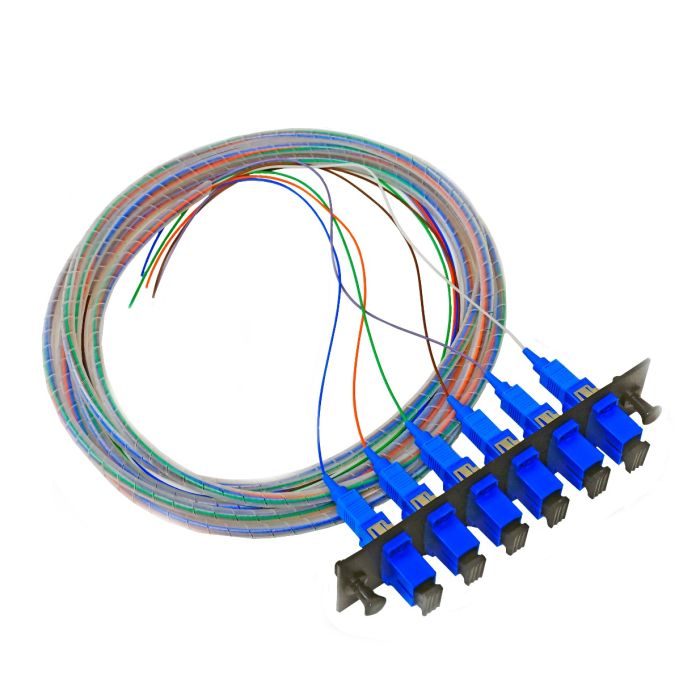

The Snap Pack is a pre-terminated fiber optic solution designed to streamline the installation process for technicians working with fiber distribution frames. By utilizing factory-terminated pigtails integrated into an LGX adapter plate, this assembly significantly reduces the time required for field splicing and installation in rack-mount environments.
Each unit features 6-fiber singlemode connectivity, utilizing high-quality Corning 900um tight-buffered fiber. To ensure long-term stability and protection, the pigtails are managed within a flexible spiral wrap. This assembly is intended for use in indoor fiber distribution cabinets and frames, offering a ready-to-install, reliable interface for optical networking applications.
Key Features
-
Pre-Terminated Design
Factory-terminated connectors minimize the need for field splicing, accelerating network deployment. -
LGX Compatibility
Standardized adapter plate footprint ensures seamless integration with existing fiber distribution enclosures. -
Corning Fiber
Constructed using industry-standard tight-buffered fiber to provide consistent transmission performance. -
Flexible Cable Management
Integrated spiral wrap tubing protects delicate 900um fibers while allowing for easy organization. -
Color-Coded Fibers
Standardized color sequencing simplifies identification and reduces errors during the splicing process. -
Low Insertion Loss
Optimized connector polishing ensures a maximum insertion loss of 0.4dB for high signal integrity.
Applications
- Fiber Distribution Frames (FDF)
- Data Center Rack Cabinets
- Central Office Distribution
- Enterprise Fiber Networks
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Singlemode |
| Connector Type | SC/UPC |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB Max |
| Buffer Size | 900um |
| Plate Color | Black |
| Protection | Flexible Spiral Wrap |
Frequently Asked Questions
Are these Snap Packs available in different configurations?
Yes, custom configurations including varying pigtail lengths, different fiber types, and connector options are available upon request.
What is the standard fiber color coding?
The 6 fibers follow the standard sequence: Blue, Orange, Green, Brown, Slate, and White.
Does this unit include the adapter plate?
Yes, the unit comes pre-loaded with an LGX adapter plate in a black finish.
What type of fiber is used in this assembly?
These assemblies are manufactured using Corning 900um tight-buffered singlemode fiber.
What is the typical insertion loss for these connectors?
The typical maximum insertion loss is 0.4dB.
