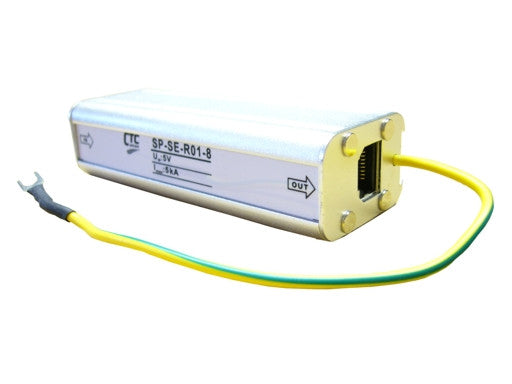

Full 8 Pin Cat6 RJ45 Ethernet Surge Protector
Move your mouse over image or click to enlarge

Full 8 Pin Cat6 RJ45 Ethernet Surge Protector

CTC Union Part No.: SP-SE-R01-8

  • $ 27.50 or


SP-SE-R01-8 is an in-line RJ45 Ethernet Cat6 cable surge protector. It installs simply on a Cat5, Cat 5e or Cat6 4 twisted pair cable.

Features:

  • Device is using special diodes and gas discharge modules for effective lightning protection.
  • It protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc.
  • The Ethernet surge protector is also available in special multi-port version with 8, 16 or 24 surge protecting ports.
  • The 8 pin surge protector is also good for RJ48c 100ohm T1 interfaces, providing effective surge protection on all 8 pin connectors from the T1 copper interface.
  • Fast energy absorption on over-voltage
  • Low resistance and minimal capacitance - minimal influence on data link
  • Easy in-line installation: two RJ45 female connectors

Note: All Ethernet surge protector versions does NOT support the IEEE 802.3af PoE standard (Power over Ethernet).

Technical specifications

  • Discharge current max.: 5KA
  • Discharge current nominal: 0.5KA
  • Max. voltage: 6.8V
  • Response time: <10ns
  • Insertion loss: <0.5dB (100MHz)
  • Capacity: 40pF
  • Dimensions: 55mm x 85mm x 24mm
  • Weight: 75g
  • Compliance: IEC 61644-1, draft 98

Product Sheet:
