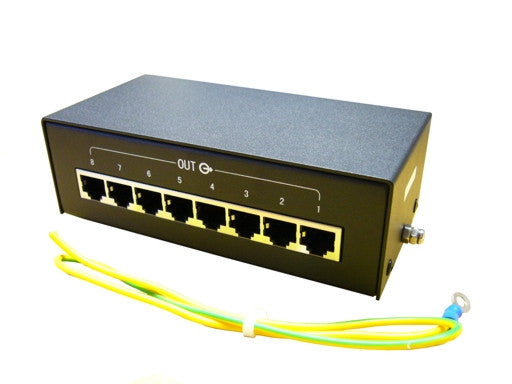

8 Port Full 8 Pin Cat6 RJ45 Ethernet Surge Protector
Move your mouse over image or click to enlarge

8 Port Full 8 Pin Cat6 RJ45 Ethernet Surge Protector

CTC Union Part No.: SP-SE-R08-8

  • $ 220.00 or


SP-SE-R08-8 is an 8 port in-line RJ45 Ethernet Cat6 cable surge protector.

It installs simply on a Cat5, Cat 5e or Cat6 4 twisted pair cable.

Device is using special diodes and gas discharge modules for effective lightning protection.

It protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc.

The Ethernet surge protector has a desktop/compact format with special grounding wire.
Features of SP-SE-R08-8 RJ45 Ethernet surge protector

  • Fast energy absorption on over-voltage
  • Low resistance and minimal capacitance - minimal influence on data link
  • Easy in-line installation: sixteen RJ45 female connectors, ground wire

Technical specifications

  • Discharge current max.: 5KA
  • Discharge current nominal: 0.5KA
  • Max. voltage: 6.8V
  • Response time: <10ns
  • Insertion loss: <0.5dB (100MHz)
  • Capacity: 40pF
  • Dimensions: 55mm x 85mm x 24mm
  • Weight: 75g
  • Compliance: IEC 61644-1, draft 98

Product Sheet:
