Overview
The SPC881 PON-CONSTRUCT Kit is a comprehensive test and validation solution designed specifically for new construction and deployment of FTTx/PON networks. This construction kit streamlines the verification process by combining high-precision optical time-domain reflectometry with automated fiber end-face inspection capabilities.

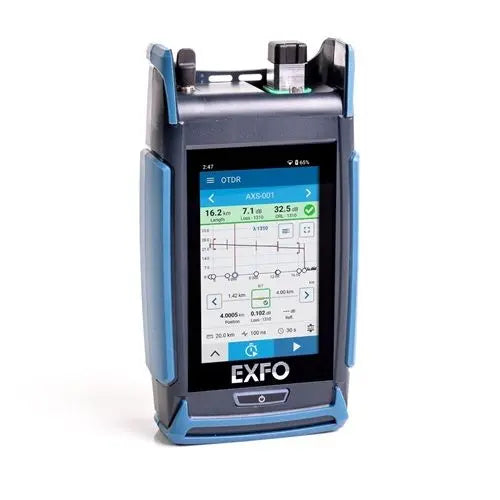

The kit features the EXFO AXS-130-SM1 Single Mode Mini OTDR, which provides essential testing at 1310/1550 nm wavelengths with a 42/40 dB dynamic range. Engineered for field environments, the system includes integrated VFL, an in-line power checker, and light source functionality. With Wi-Fi/Bluetooth connectivity and an interchangeable connector system, the unit is suited for FTTx/MDU service activation, passive optical LAN testing, and live fiber troubleshooting.
To ensure link integrity, the package includes the FIP-200-A fiber inspection tool. This unit automates connector cleanliness assessment in seven seconds, offering auto-focus, auto-center, and auto-analysis to reduce human error during high-density deployments.
Key Features
-
Automated Inspection
The included FIP-200-A provides rapid 7-second auto-analysis for connector cleanliness, ensuring consistent signal quality. -
Dual-Wavelength OTDR
Features 1310/1550 nm capability with 42/40 dB dynamic range, optimized for accurate FTTx/PON network characterization. -
Integrated Connectivity
Built-in Wi-Fi and Bluetooth enable seamless data transfer and remote instrument management in the field. -
Versatile Testing
Includes integrated VFL, in-line power meter, and light source to consolidate multiple test functions into one handheld unit. -
Automated Processing
Supports auto-focus, auto-center, auto-save, and auto-reset functions to increase throughput during fiber certification. -
Interchangeable Design
Equipped with swap-out SC/APC connector interfaces and interchangeable optical heads to accommodate diverse network topologies.
Applications
- FTTx/PON network construction and validation
- Service activation for FTTx/MDU
- Live fiber network troubleshooting
- Passive optical LAN testing
- Metro network link characterization

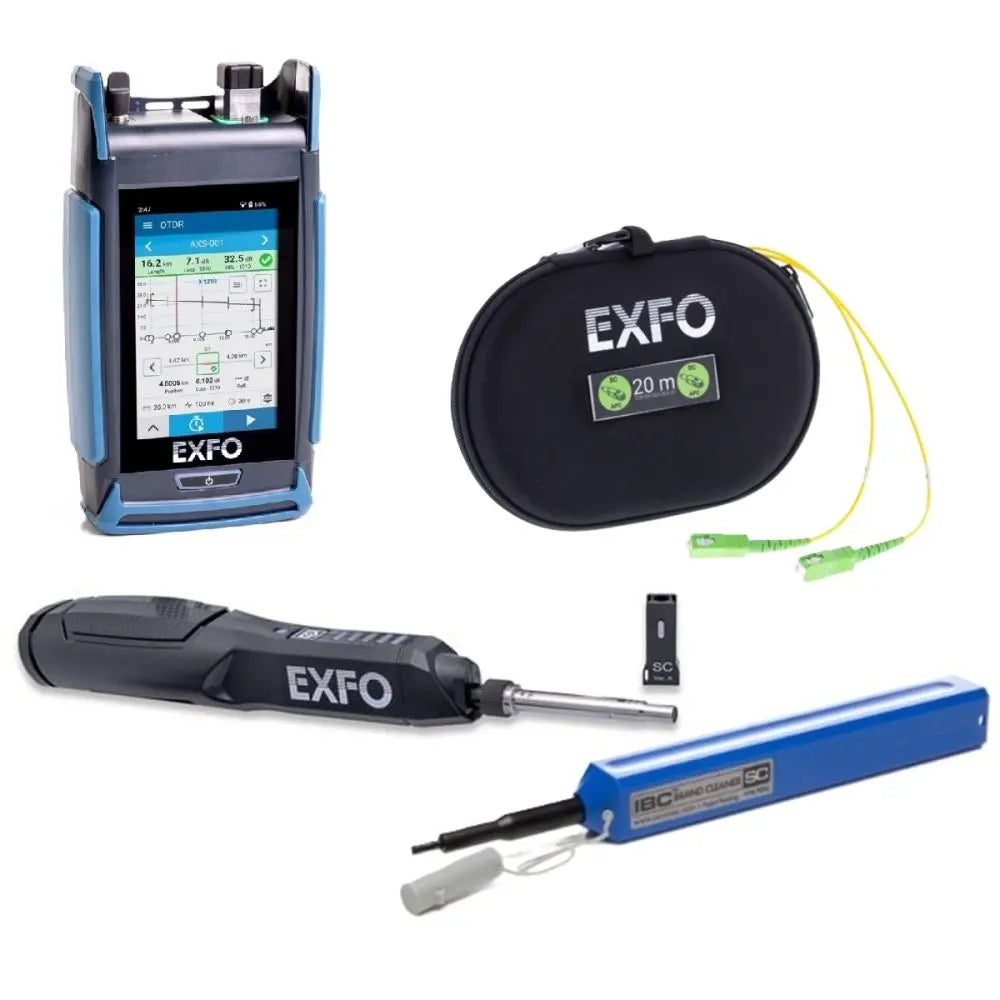

Package Contents
- AXS-130-SM1 Compact OTDR
- FIP-200-A Fiber Inspection Tool
- OHC-L Long Reach Optical Head
- CTIP-SC Bulkhead Connector

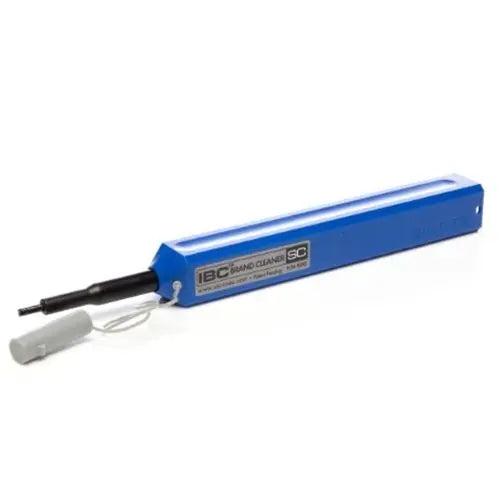

- IBC Brand 2.5mm Cleaner
- SC/APC to SC/APC Test Cord Box (20m, OS2 SM)
- USB-A to USB-C Cable
- Protective cap and cord assembly
- SC Adapter for patch cord inspection
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Kit Part Number | SPC881 |
| OTDR Model | AXS-130-SM1 |
| Wavelengths | 1310 / 1550 nm |
| Dynamic Range | 42 / 40 dB |
| Inspection Tool | FIP-200-A |
| Connector Type | SC/APC |
| Fiber Type | Single Mode (SM) |
Frequently Asked Questions
Does this kit include everything needed for inspection?
Yes, the kit includes the FIP-200-A inspection tool, OHC-L optical head, required tips, and an IBC 2.5mm cleaner.
Is this OTDR suitable for live fiber?
Yes, the AXS-130-SM1 is designed for live fiber troubleshooting within FTTx/PON architectures.
What is the length of the included test cord?
The included SC/APC to SC/APC test cord box contains 20 meters of OS2 single mode fiber.
Does the OTDR have Bluetooth connectivity?
Yes, the unit features both Wi-Fi and Bluetooth connectivity for enhanced field data management.
Are the connector heads interchangeable?
Yes, the inspection system utilizes interchangeable optical heads and tips to support various connector interfaces.
