SPC884 PON-Maintenance Optical Explorer OX1 Pro Kit

Overview

The SPC884 PON-Maintenance Network Activation Kit is a comprehensive solution designed for fiber network verification and maintenance. Centered around the EXFO OX1 Pro Optical Explorer, this kit provides technicians with the tools necessary for 1650nm (live) fiber testing, link mapping, and fault tracking.

Engineered for efficiency in passive optical networks, the kit includes a powerful optical fiber multimeter with an integrated dual-band power checker. This system provides automated assessment capabilities, including EXFO Advisor 5-star link quality indicators, ONT detection, and splitter identification, ensuring rapid deployment and effective troubleshooting in field environments.

The kit also features the FIP-200-A Connector Checker for standardized inspection. By providing automated cleanliness assessments in just 7 seconds, it helps maintain network integrity and reduce signal loss caused by contaminated optical interfaces.

Key Features

• 1650nm Live Fiber Testing
  Enables testing on live networks without disrupting service to subscribers.
• Integrated Power Checker
  Features an inline dual-band power checker with a maximum input power of 23 dBm for accurate signal analysis.
• Automated Assessment
  Uses Flash Advisor and Fault Explorer technology to identify link issues and visualize network structure.
• 5-Star Link Quality Indicator
  Provides a clear, instant rating of link health using EXFO Advisor technology.
• PON-Specific Detection
  Capable of detecting splitters and ONTs to simplify troubleshooting in complex network architectures.
• Rapid Connector Inspection
  The FIP-200-A provides automated connector cleanliness assessments in 7 seconds, improving technician productivity.
• Broad Inspection Range
  Includes specialized tips for SC/APC and LC/APC connectors, plus an OptiTap bulkhead connector for versatile field use.

Applications

• PON network activation and maintenance
• Fiber link verification and characterization
• Live network troubleshooting
• ONT detection and validation
• Fiber connector inspection and cleaning

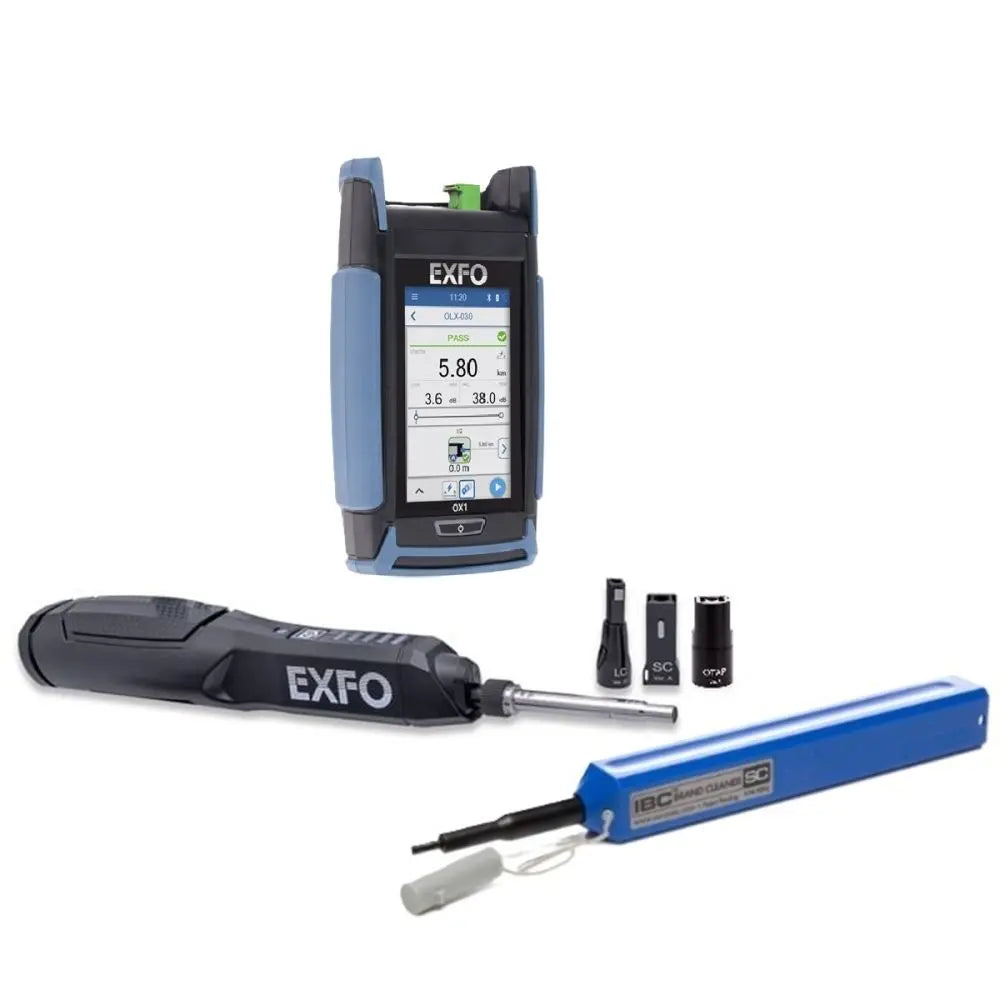

Package Contents

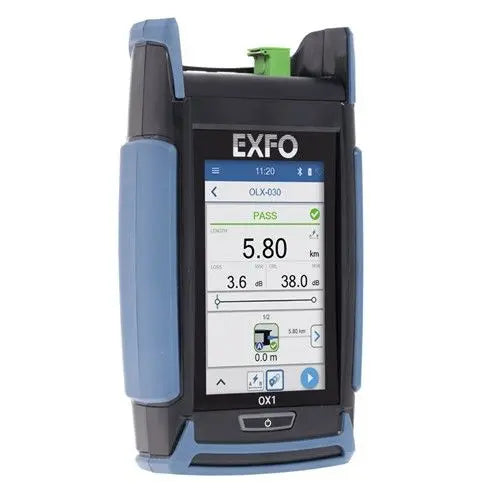

• OX1-PRO-M-PPM Optical Multimeter
• FIP-200-KIT-2 Fiber Inspection Kit
• FIP-200 CTIP-OTAP OptiTap Connector

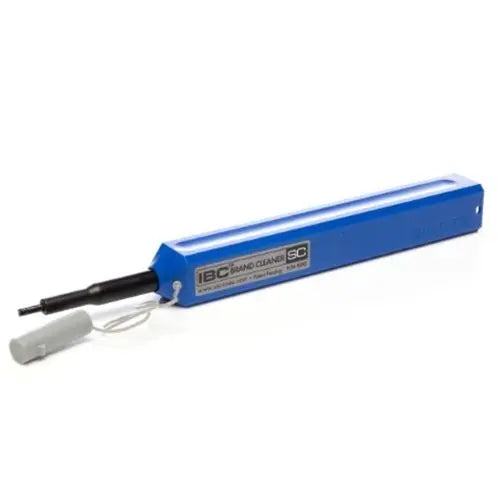

• IBC Brand Cleaner for 2.5mm connectors

Technical Specifications

Frequently Asked Questions

What is the primary function of the OX1 Pro?
The OX1 Pro is an optical fiber multimeter designed for link verification, fault tracking, and power measurement in fiber optic networks.

Can this kit be used on live fiber lines?
Yes, the OX1 Pro supports 1650nm testing, which allows for troubleshooting on live networks without interrupting service.

How fast does the connector checker provide results?
The FIP-200-A provides an automated assessment of connector cleanliness in approximately 7 seconds.

What types of connectors are supported?
The kit includes tips for SC/APC, LC/APC, and OptiTap bulkhead connectors, with additional support for 2.5mm connectors via the included IBC cleaner.

What is the maximum input power for the power checker?
The integrated power checker supports a maximum input power of 23 dBm.
