Overview

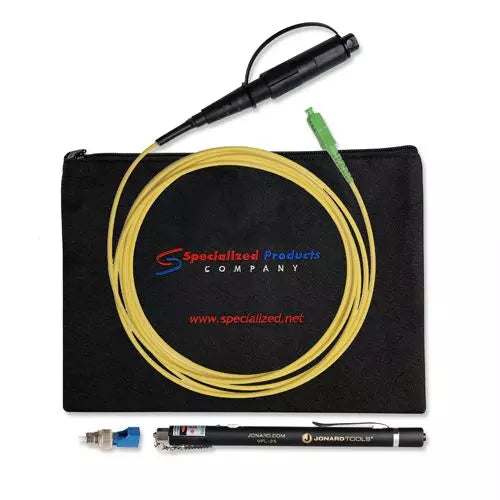

The SPC962 SC/APC FTTX Test Jumper Kit is a professional-grade testing solution designed for field technicians and network installers. It combines a high-performance single-mode (OS2) fiber optic patch cable with the Jonard VFL-150 visual fault locator, providing a comprehensive toolset for maintaining outside plant distribution networks.
This kit is specifically engineered for FTTX environments where speed and signal integrity are critical. The included test jumper is built for durability with a 3.0mm PVC jacket, making it suitable for both indoor and outdoor deployments across a broad temperature range. Whether performing continuity tests, fiber tracing, or identifying breakpoints in optical cabling, this kit offers the diagnostic capability required for effective network management.
Key Features
-
High-Performance Patch Cable
Features a 3-meter single-mode (OS2) SC/APC to SC/APC jumper with low insertion loss for precise signal testing. -
Jonard VFL-150 Included
Includes a professional-grade visual fault locator for efficient fiber tracing and troubleshooting. -
Versatile Connector Compatibility
The VFL-150 is compatible with both 2.5mm and 1.25mm fiber connectors for broad application use. -
Rugged Design
Built to withstand demanding environments with an operating temperature range of -40 to +185°F. -
Durable Carrying Case
Comes with a 6" x 10" water-resistant polyester zipper tool bag for organized storage and protection. -
Corning OptiTap Compatibility
The SuperTap/SCA connector design ensures seamless integration with standard network interfaces.
Applications
- Outside plant fiber distribution network installation
- FTTX network troubleshooting and maintenance
- Fiber optic continuity testing
- Fiber tracing and routing
- Locating breaks and poor connections in optical cabling
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard |
| Part Number | SPC962 |
| Fiber Type | Single Mode (OS2) |
| Connector Type | SC/APC to SC/APC |
| Cable Length | 3 Meters (9.84 feet) |
| Cable Diameter | 3.0mm |
| Insertion Loss | Mean 0.15dB, Max 0.5dB |
| Return Loss | Min 55dB |
| Operating Temperature | -40 to +185°F |
Frequently Asked Questions
Is the VFL compatible with different connector sizes?
Yes, the included Jonard VFL-150 is compatible with both 1.25mm and 2.5mm fiber optic connectors.
Can this kit be used outdoors?
Yes, the components and the jumper are rated for a broad temperature range of -40 to +185°F, making them suitable for outdoor plant environments.
What is the length of the included fiber patch cable?
The included test jumper is 3 meters (9.84 feet) in length.
Does the kit include a case?
Yes, the kit is supplied in a durable, water-resistant polyester zipper tool bag measuring 6" x 10".
Are the connectors compatible with OptiTap?
The SuperTap/SCA connector used in the jumper assembly is compatible with Corning OptiTap systems.
