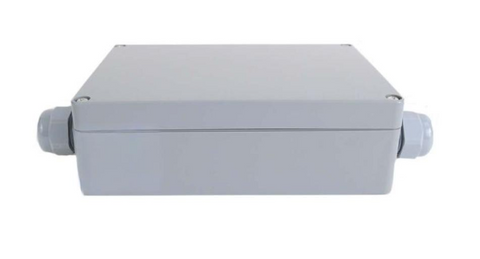

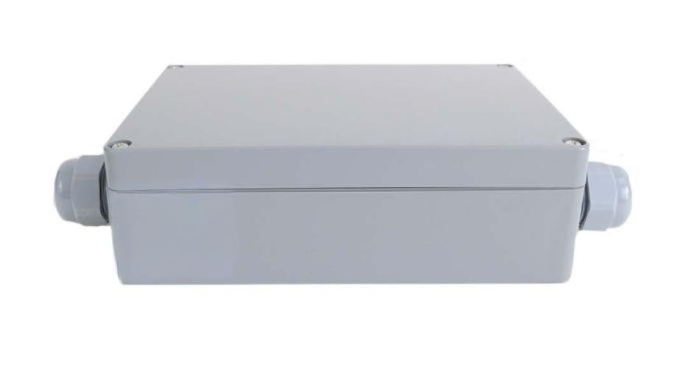

Fusion Splice Enclosure – 12 Position

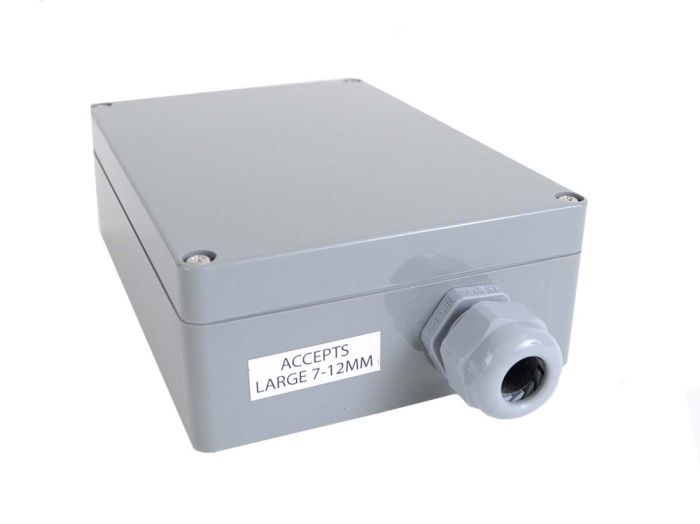

Accepts 7–12 mm Cable OD

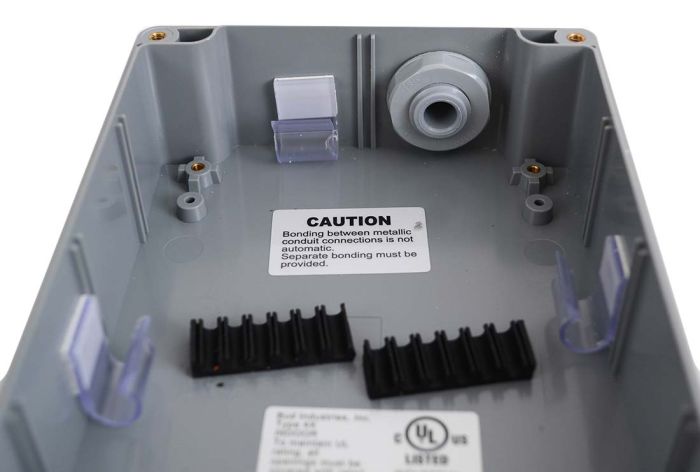

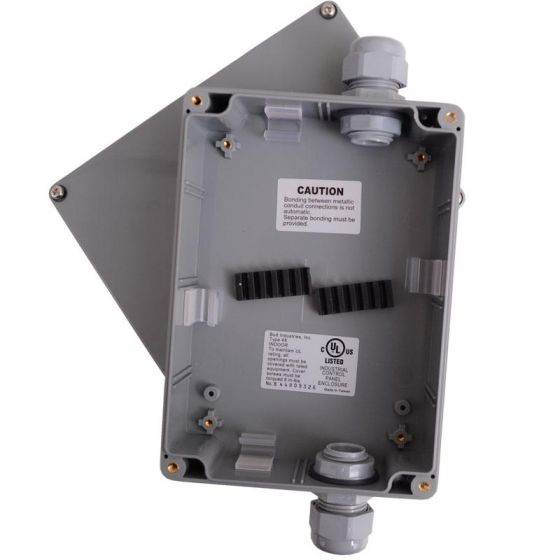

This wall-mount fusion splice enclosure is designed for secure protection and organization of fiber splices in controlled indoor environments. It utilizes a 12-position molded fusion splice chip to securely hold splice sleeves while providing organized internal routing for spare fiber.

Cable entry grommets provide strain relief for incoming and outgoing cables with outer diameters between 7 mm and 12 mm. Internal fiber management guides allow excess fiber to be neatly coiled, helping maintain proper bend radius and long-term reliability. The compact enclosure offers durable mechanical protection and straightforward wall-mount installation.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds up to (12) splice sleeves

  • 12-position fusion splice chip (pre-installed)

• Cable Compatibility:

  • Accepts cable outer diameter from 7 mm to 12 mm

  • Integrated strain relief grommets for cable entry

• Construction:

  • Material: High-impact ABS

  • Color: Dark gray

  • Protection class: NEMA 4X (indoor use)

• Design Features:

  • Wall-mountable enclosure

  • Internal fiber management for routing and slack storage

  • Designed for fusion splicing applications

  • Recommended for controlled environments

• Dimensions:

  • 6.75" H × 4.75" W × 2.125" D
