Fusion Splice Enclosure – 12 Position
Accepts Up to 7 mm Cable OD

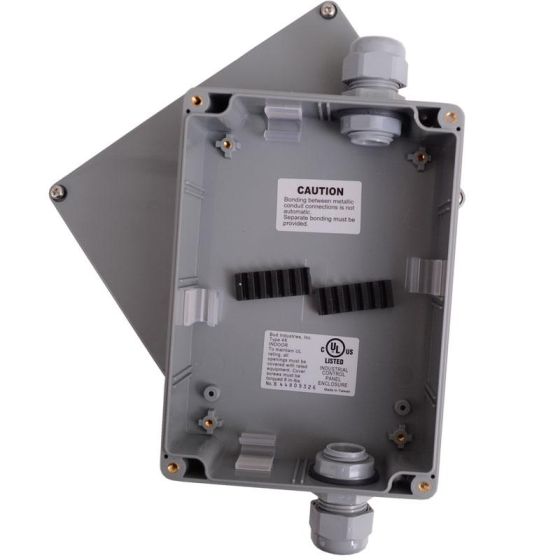

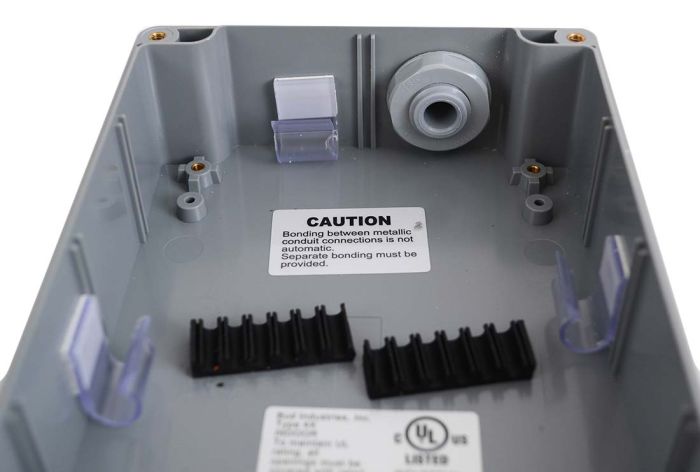

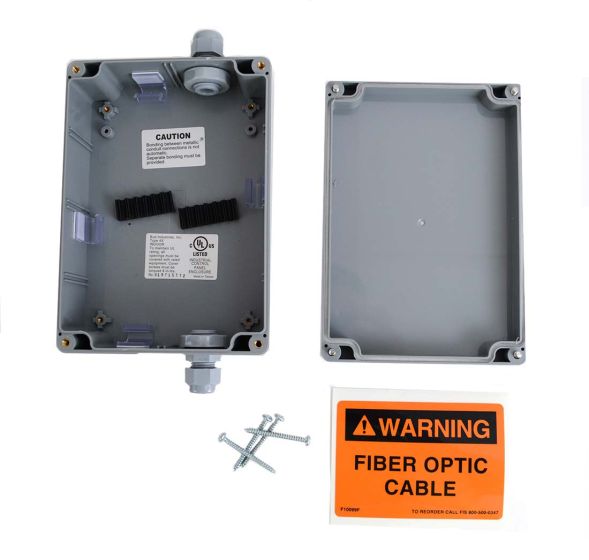

This wall-mount fusion splice enclosure is designed for secure protection and organization of fiber splices in controlled indoor environments. It utilizes a 12-position molded fusion splice chip to firmly secure splice sleeves while providing organized internal routing for spare fiber.

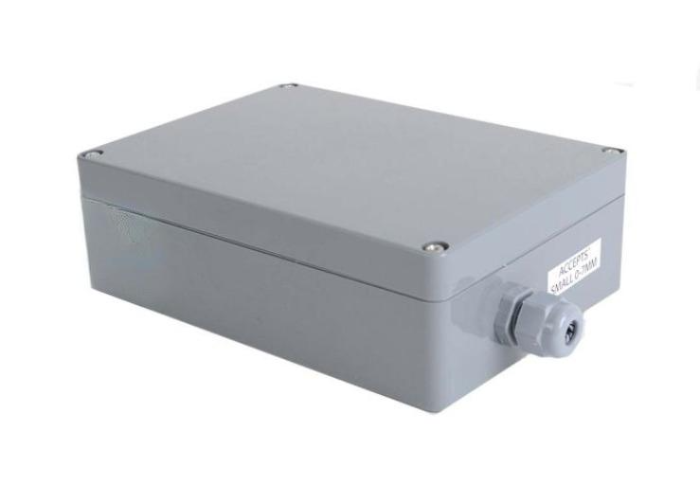

Cable entry grommets on each end provide strain relief for incoming and outgoing cables with outer diameters up to 7 mm. Internal fiber management guides allow excess fiber to be neatly coiled, helping maintain proper bend radius and long-term reliability. The compact enclosure offers reliable mechanical protection and straightforward wall-mount installation.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds (12) splice sleeves

  • 12-position fusion splice chip (pre-installed)

• Cable Compatibility:

  • Accepts cable outer diameter up to 7 mm

  • Cable grommet on each end for strain relief

• Construction:

  • Material: High-impact ABS

  • Color: Dark gray

  • Protection class: NEMA 4X (indoor use)

• Design Features:

  • Wall-mountable enclosure

  • Internal fiber management for routing and slack storage

  • Designed for fusion splicing applications

  • Recommended for controlled environments

• Dimensions:

  • 6.75" H × 4.75" W × 2.125" D
