Mechanical Splice Enclosure – 12 Position
Accepts 7–12 mm Cable OD

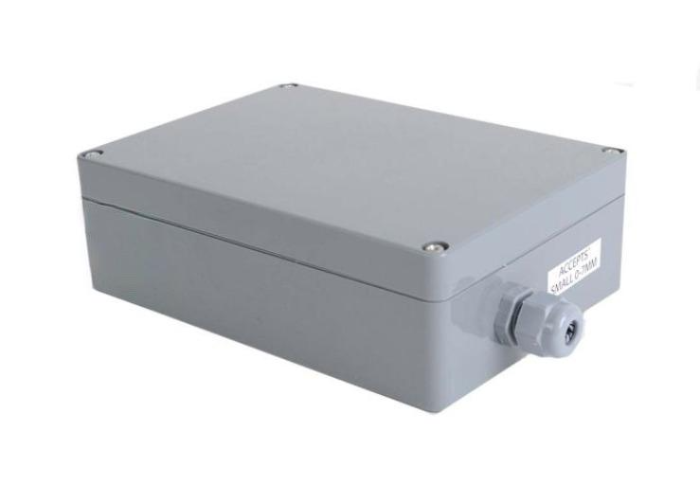

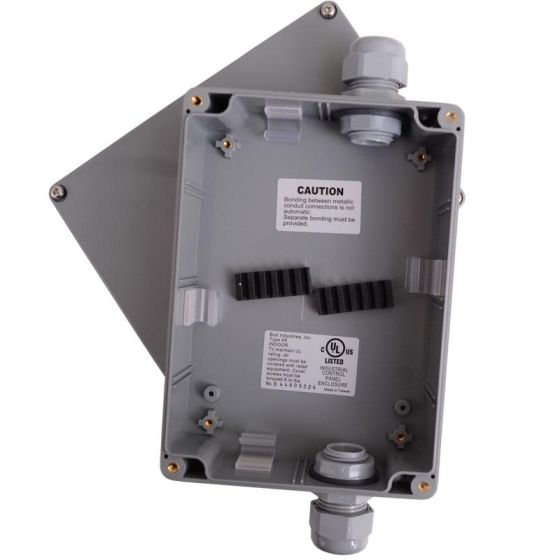

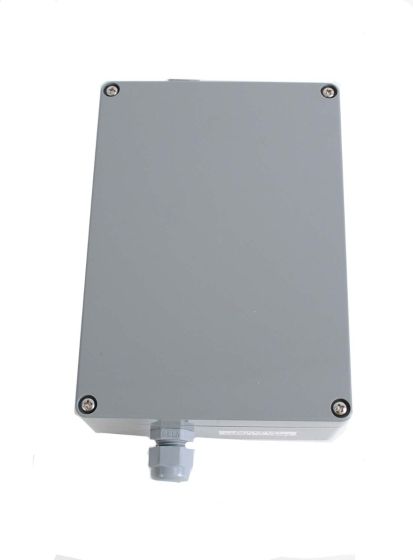

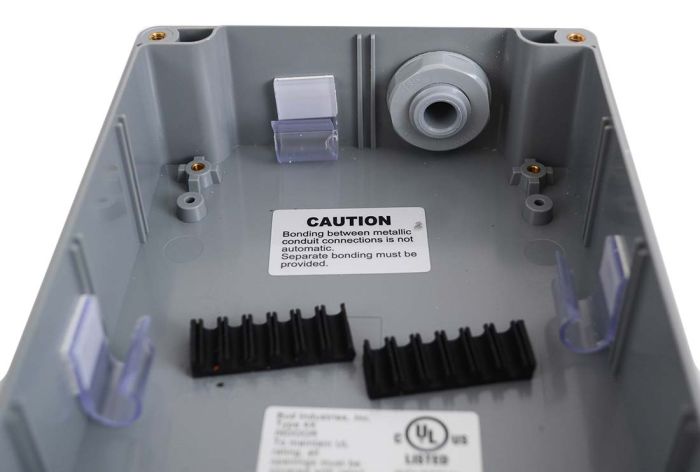

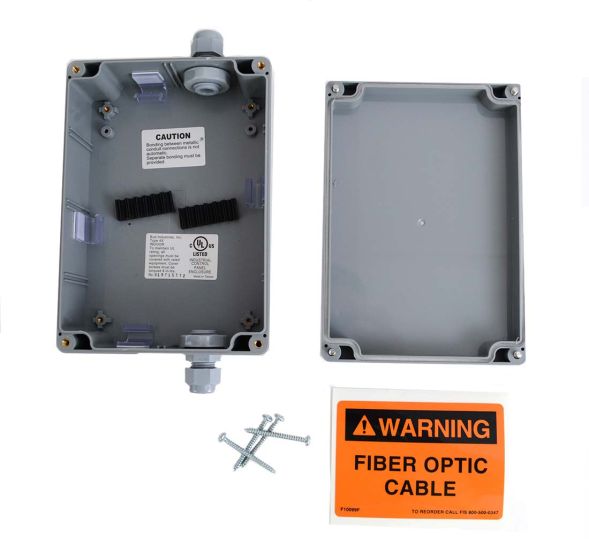

This wall-mount mechanical splice enclosure is designed for secure fiber splice protection in controlled indoor environments. It features a 12-position molded mechanical splice chip that firmly secures splices while providing organized internal fiber routing for excess slack.

The enclosure includes integrated strain relief grommets for incoming and outgoing cables with outer diameters between 7 mm and 12 mm. Internal fiber management guides allow spare fiber to be neatly coiled, helping maintain proper bend radius and long-term reliability. The durable high-impact enclosure provides mechanical protection while remaining compact and easy to install.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds up to (12) splice sleeves

  • 12-position mechanical splice chip (pre-installed)

• Cable Compatibility:

  • Accepts cable outer diameter from 7 mm to 12 mm

  • Integrated strain relief for incoming and outgoing cables

• Construction:

  • Material: High-impact ABS

  • Color: Dark gray

  • Protection class: NEMA 4X (indoor use)

• Design Features:

  • Wall-mountable enclosure

  • Internal fiber management for routing and slack storage

  • Suitable for mechanical splicing applications

  • Recommended for controlled environments

• Dimensions:

  • 6.75" H × 4.75" W × 2.125" D

• Notes:

  • Designed for mechanical splice sleeves only
