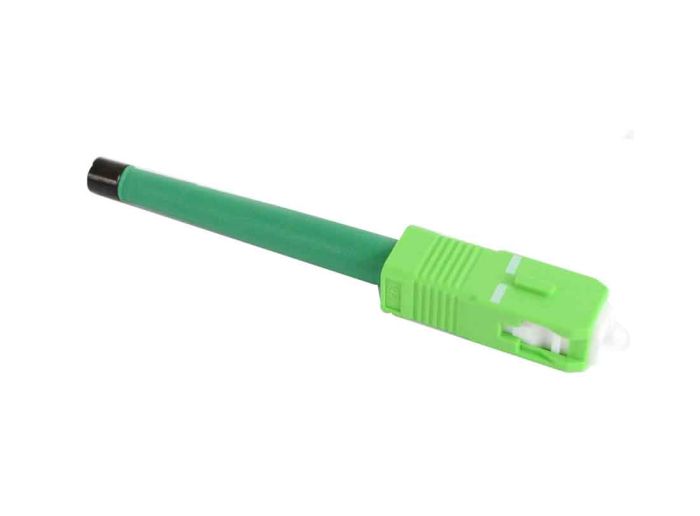

Armordillo SC APC Splice-On Connector, Singlemode, 3mm / 2mm / 1.6mm, Green – 10 Pack

The Armordillo SC APC Splice-On Connector delivers exceptional singlemode fiber performance with the durability needed for field installations. Factory-terminated and pre-polished, each connector includes a factory-cleaved 900µm fiber stub for fast, consistent splicing.

The unique boot design conceals and protects the splice, while the extended brass crimp sleeve provides added splice protection and uses the cable’s Kevlar strength members for maximum pull strength. Compatible with many fusion splicers (cordage fiber holders and Universal SOC Oven required).

Download product spec sheet (PDF)

Key Features:

• Connector type: SC APC

• Fiber type: Singlemode

• Cable compatibility: 3mm, 2mm, and 1.6mm jacketed fiber

• Polish type: APC (Angled Physical Contact)

• Format: 10-pack

Product Highlights:

• Factory-terminated and pre-polished for fast, reliable installation

• Integrated 900µm fiber stub ensures precision and performance

• Unique boot design fully conceals and protects the splice

• Extended brass crimp sleeve protects splice and engages Kevlar for maximum strength

• Compatible with most fusion splicers (cordage fiber holders & Universal SOC Oven required)

• Return loss performance:

  • APC: >60 dB

  • UPC: >55 dB

  • MM: 35 dB (typical)

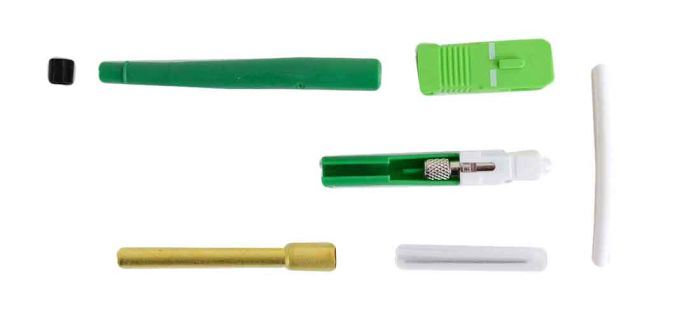

Package Includes:

• 10x Armordillo SC APC Splice-On Connectors (green)

• Boots for 3mm, 2mm, and 1.6mm cable sizes

• Brass crimp sleeves for splice protection

A rugged, high-performance solution for singlemode applications requiring ultra-low back reflection and maximum durability in the field.
