Overview
The Splice-On Connector (SOC) is a factory-terminated, pre-cleaved pigtail designed for rapid field termination. By integrating a 27mm fusion splice protection sleeve directly into the connector assembly, it provides a secure and compact connection without the need for additional splice trays or excessive cabinet space.
These connectors are engineered for use with fiber optic fusion splicers that support removable fiber holders. The internal ferrule is constructed from zirconia for consistent optical performance in demanding network environments.
Key Features
-
Factory Terminated
Ensures consistent, high-quality optical performance compared to traditional field-polished connectors. -
Integrated Protection
Includes a 27mm splice protection sleeve concealed by a custom strain relief boot. -
Pre-Cleaved Fiber
Reduces field preparation time and improves splicing efficiency. -
Compact Design
Eliminates the requirement for extra splice chips or deep cable management enclosures. -
Zirconia Ferrule
Provides physical durability and precise alignment for multimode fiber connections. -
Industry Compatibility
Engineered to work with most industry-leading fusion splicers equipped with removable fiber holders.
Applications
- Data center fiber infrastructure
- FTTX installations
- Field repair and termination
- Fiber-to-the-desk connections

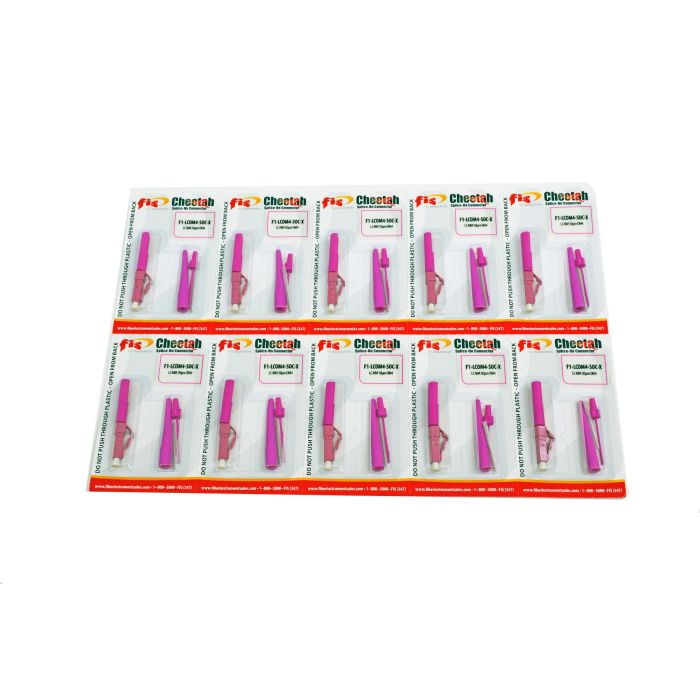

Package Contents
- 10 x Splice-On Connectors
- 10 x Fusion Splice Sleeves
- 10 x Connector Boots
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC |
| Fiber Type | Multimode 50um OM4 |
| Cable Size | 900um |
| Package Quantity | 10 |
| Ferrule Material | Zirconia |
| Splice Sleeve Length | 27mm |
| UPC Return Loss | -55dB |
| PC Return Loss | -30dB |
Frequently Asked Questions
What equipment is required to install these connectors?
A fusion splicer that supports removable fiber holders is required for installation.
Does this connector require a splice tray?
No, the integrated 27mm sleeve and boot design eliminates the need for separate splice trays or chips.
Is the fiber pre-cleaved?
Yes, the connectors are factory-cleaved to minimize installation steps.
What is the return loss specification?
These connectors meet or exceed -55dB for UPC and -30dB for PC applications.
What ferrule material is used?
The ferrules are manufactured from zirconia.
