Armordillo LC Multimode 50µm OM4 Splice-On Connectors provide fast, reliable, and low-loss terminations with factory-prepared ferrules and 900µm cleaved fiber stubs for accurate alignment and consistent performance.

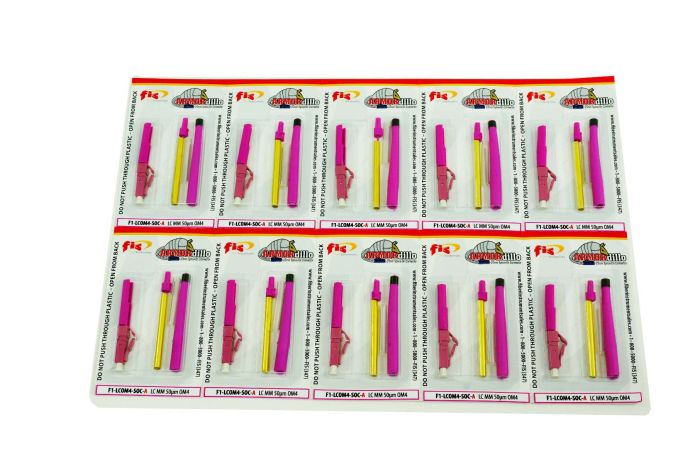

The protective boot conceals and safeguards the splice, while the extended brass crimp sleeve and Kevlar engagement ensure maximum pull strength and long-term durability. Supplied in a 10-pack magenta blister, these connectors are ideal for professional OM4 multimode installations.

Download Product Spec Sheet (PDF)

Key Benefits

• High-performance OM4 multimode fiber terminations with minimal insertion loss

• Factory-prepared ferrule and cleaved stub for quick, precise splicing

• Protective boot conceals splice for enhanced reliability and easy cable management

• Brass crimp sleeve and Kevlar engagement maximize durability and pull strength

• Compatible with most fusion splicers (cordage fiber holders & Universal SOC Oven required)

• Convenient 10-pack blister for installers

Specifications

• SKU: F1LCOM4MSOCA10

• Fiber Type: Multimode 50µm OM4

• Connector Style: LC

• Return Loss: APC > 60 dB, UPC > 55 dB, MM 35 dB (typical)

• Boot Sizes: 3mm, 2mm, 1.6mm

• Pack Size: 10
