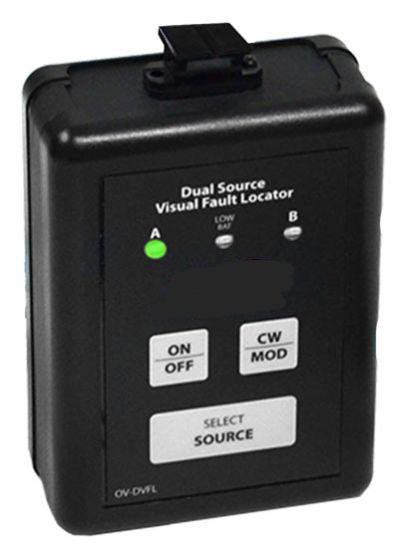

SR4 MPO Visual Verifier
SR4 MPO Visual Verifier
With the steady increase of utilizing 40 and 100 Gig systems using Multimode MPO assemblies, the "œSR4"polarity verifier has proven to be a very useful set up around the industry. As with most MPO networks, continuity and polarity verification can prove challenging and time consuming.
Traditional methods involve expensive breakout cables and single fiber visual fault locators, checking only one channel at a time. The new SR4 MPO Visual Verifier allows the user to quickly ensure the proper continuity of the first four and last four channels of the MPO cable with visible light.
Its handheld design, coupled with its straight forward easy to use keypad interface will determine if all channels are properly installed.
- Uses 650nm visible red lasers
- Verifies continuity and SR4 polarity instantly

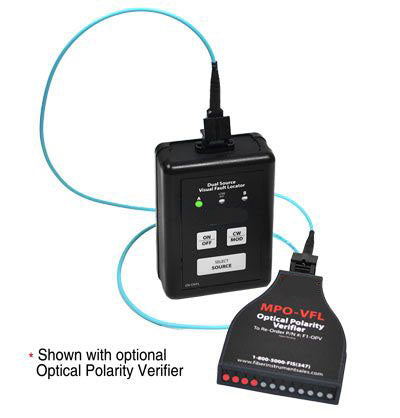

- Optical Polarity Verifier (patent pending) optional accessory if breakout cassettes are not present (F1OPV)
FEATURES
• Dual visual fault locator for MPO/PC Connectors
• 9 volt battery included
• Small handheld design
• Can activate single or both sources simultaneously, one modulates while one is constant
• Easy to identify continuity
• Easy verification of “SR4” cable polarity
• Quick identification of continuity after installation
• Low battery indicator light
• “A” and “B” source indicator lights
• Plug and Play MPO mating sleeve allows for secure connection
• Accepts Female MPO/PC Connectors Only
Source Type: LASER
Wavelength: 650nm Visible Red
Output power level: -1.0 dBm to +1.0 dBm Typical 0dBm ( 1mW)
Safety: CLASS IIIa ( Avoid direct eye exposure)
Output Type: 2k Modulation or Continuous Wave(CW)
Fiber type: Multimode (50µm/125µm) 12-Fiber MPO SR-4 Configuration
Connector Type: Male - MPO/PC
Battery Type: 9V Alkaline
Battery life: 20 hours of continuous usage
Temperature Range: 0 - 50º C
Dimensions: 2.95” W x 4.70” H x 1.52” D
Weight: (oz) 20
