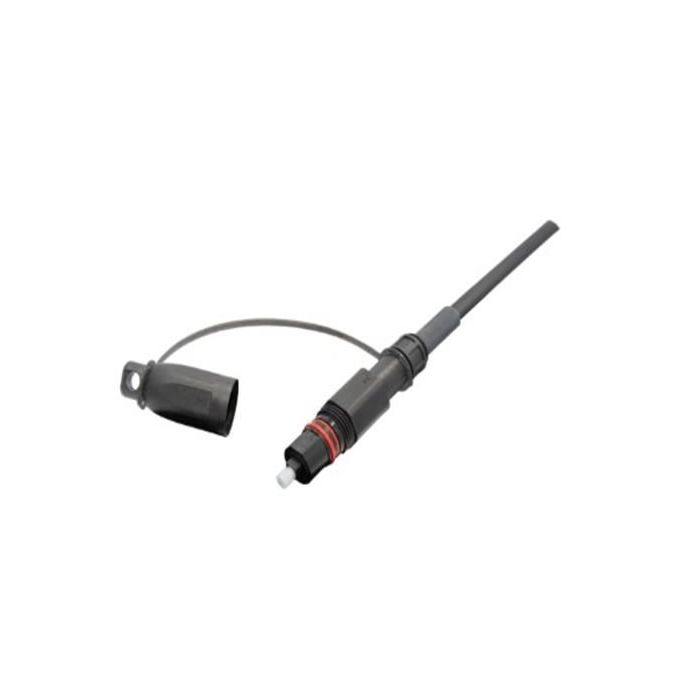

SST Flat Tone Drop H-IP Tap Connector Pigtail 500 ft (per spool)

Overview

The SST Flat Tone Drop H-IP Tap Connector Pigtail is a specialized fiber optic assembly designed for outside plant (OSP) distribution networks. This assembly is engineered to facilitate reliable connections in fiber-to-the-x (FTTX) environments, specifically addressing the requirements of drop cable deployments where locating and tracing are necessary.

This cable features a flat, self-supporting toneable design, allowing technicians to easily locate the cable path underground or along aerial runs. The integrated H-IP tap connector ensures rapid and secure field termination, minimizing installation time and reducing the need for extensive splice equipment in the field. This assembly is built to withstand harsh outdoor conditions, providing long-term performance in various environmental applications.

Key Features

• Toneable Design
  Includes a metallic tracing wire that enables precise underground location, simplifying maintenance and preventing accidental damage during excavation.
• H-IP Tap Connector
  Pre-terminated with a hardened connector interface to provide robust, environmentally sealed connections suitable for outdoor service terminals.
• Flat Drop Construction
  Optimized for stability and ease of handling, the flat cable profile is ideal for both aerial and direct-burial deployment methods.
• Factory Terminated
  Reduces the requirement for onsite field splicing, which lowers installation labor costs and improves overall connection consistency.
• Ruggedized Exterior
  Constructed with durable materials to resist UV exposure, moisture, and extreme temperature fluctuations common in outside plant installations.
• Standardized Pigtail Length
  Supplied on a 500-foot spool, providing sufficient length for standard residential or commercial drop deployments.

Applications

• Fiber-to-the-Home (FTTH) network drops
• Underground distribution tracing
• Aerial cable installations
• Hardened terminal connections in OSP networks

Technical Specifications

Frequently Asked Questions

What is the purpose of the "tone" feature in this drop cable?
The toneable feature includes a conductive tracer wire that allows utility technicians to use locating equipment to track the buried path of the cable, which is critical for preventing fiber cuts during subsequent ground work.

Is this cable suitable for direct burial?
Yes, the cable is designed with a ruggedized jacket suitable for outside plant environments, including direct burial and aerial installations.

Can this connector be used with standard hardened terminals?
Yes, the H-IP tap connector is designed to be compatible with standard industry-hardened multi-service terminals (MSTs) and drop enclosures.

Does this come pre-terminated on both ends?
This product is configured as a pigtail, typically featuring the H-IP connector on one end for terminal connection, with the other end prepared for splicing.

What is the benefit of using a factory-terminated assembly?
Factory-terminated assemblies provide higher optical performance consistency and significantly reduce the time and skill required for field installation compared to splicing individual connectors.
