Overview

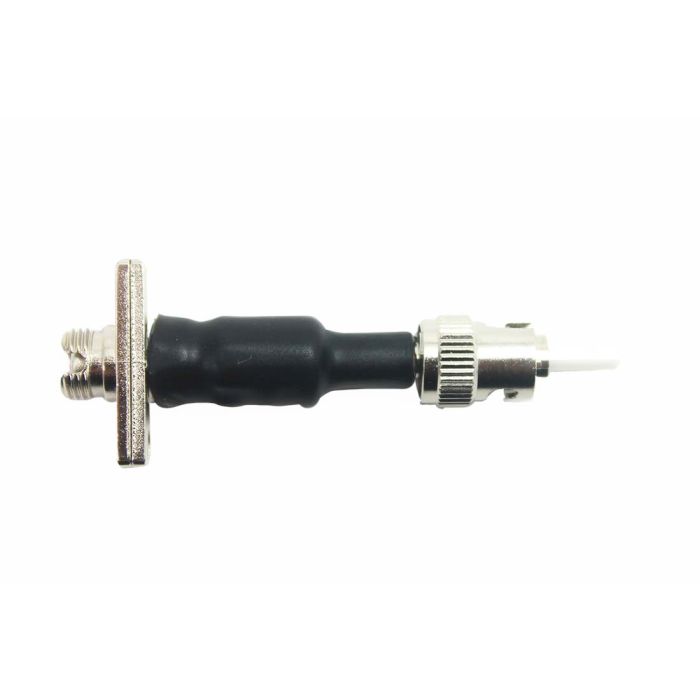

The ST Male to FC Female hybrid fiber optic adapter is designed to provide a secure and precise connection between different interface types. This adapter allows for seamless integration between systems utilizing ST-style connectors and equipment requiring an FC interface.
Constructed with a rugged metal body, this adapter is built for durability in various operating environments. It features high-quality internal and external zirconia ferrules to ensure low-loss optical performance, making it suitable for standard singlemode 9/125um fiber optic applications.
Key Features
-
Hybrid Interface Design
Facilitates connection between disparate ST and FC fiber optic connector styles. -
Zirconia Ferrule Construction
Internal and external zirconia alignment sleeves provide precision centering for signal integrity. -
Rugged Metal Housing
Ensures long-term structural stability in demanding industrial network installations. -
Singlemode Precision
Optimized for 9/125um singlemode fiber requirements to minimize modal dispersion. -
Low Insertion Loss
Maintains high signal throughput across the connection point for efficient network performance. -
Simplex Configuration
Provides a dedicated, space-efficient connection path for single-channel fiber links.
Applications
- Fiber optic patch panels
- System testing and diagnostic setups
- Interconnection of legacy and modern network equipment
- Fiber network maintenance and troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | Hybrid Male to Female |
| Connector A | ST Male |
| Connector B | FC Female |
| Fiber Type | Singlemode |
| Core/Cladding | 9/125um |
| Alignment Sleeve | Zirconia |
| Housing Material | Metal |
Frequently Asked Questions
What is the primary function of this adapter?
This hybrid adapter allows you to convert an ST-style male connection to an FC-style female port, enabling interoperability between different hardware interfaces.
Is this compatible with multimode fiber?
No, this unit is specifically designed for 9/125um singlemode fiber applications.
What material is used for the alignment sleeves?
The adapter utilizes zirconia ferrules, which are standard for high-precision fiber optic alignments.
Can this be used for cable-to-cable connections?
Yes, this adapter is suitable for cable-to-cable connections in network infrastructures.
Is the housing plastic or metal?
The housing is constructed from metal for increased durability.
