Overview

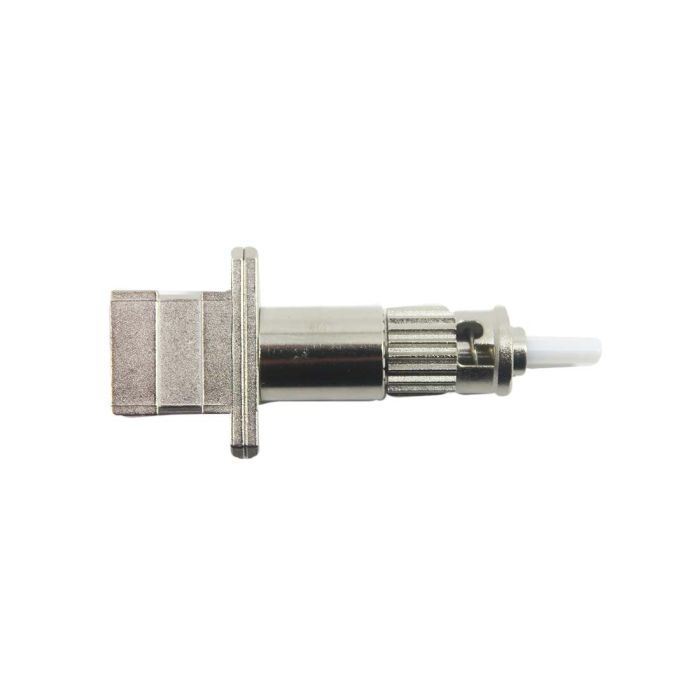

This ST male to SC female hybrid adapter is designed to facilitate seamless connections between different fiber optic connector types. By converting an ST interface to an SC interface, this adapter allows for flexible patching in diverse networking setups.
Constructed with a rugged metal body, the adapter is built to endure frequent use in standard telecommunications environments. It utilizes high-precision internal and external zirconia ferrules to ensure stable optical alignment and performance.
Key Features
-
Hybrid Connector Design
Allows for direct mating between ST male and SC female interfaces, simplifying network reconfiguration. -
Zirconia Ferrules
Features high-quality zirconia ceramic ferrules for precise alignment and minimized signal insertion loss. -
Rugged Metal Housing
Provides enhanced durability and protection for the internal optical components. -
Low Insertion Loss
Engineered to maintain signal integrity across connection points. -
Simplex Configuration
Designed for single-fiber applications. -
Broad Compatibility
Supports standard singlemode 9/125um fiber systems.
Applications
- Fiber optic patch panels
- Telecommunications network equipment
- Data center cross-connects
- Testing and measurement setups
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18705CSTSCS |
| Connector A | ST Male |
| Connector B | SC Female |
| Fiber Type | Singlemode |
| Core/Cladding | 9/125um |
| Ferrule Material | Zirconia |
| Housing Material | Metal |
Frequently Asked Questions
What does a hybrid adapter do?
A hybrid adapter allows you to connect two different styles of fiber optic connectors, in this case, converting an ST male interface to an SC female interface.
Is this adapter suitable for singlemode fiber?
Yes, this adapter is specifically designed for 9/125um singlemode fiber applications.
What material is the ferrule?
The adapter uses zirconia ferrules, which provide the high precision required for low-loss fiber connections.
Can this be used for multimode fiber?
No, this specific part number is intended for singlemode 9/125um fiber.
Does this include dust caps?
Standard industry practice for these adapters includes protective caps, though they are not explicitly detailed in the provided specs.
