Overview
The ST Multimode Connector is engineered for fast, efficient field termination in high-density fiber environments. Featuring a one-piece body design, these connectors simplify the assembly process while ensuring consistent optical performance. They are ideal for various network applications where a reliable and durable connection is required.
Constructed with a high-precision pre-radius Zirconia ceramic ferrule, this connector is designed for quick polishing and long-term durability. The integrated rear design allows for direct crimping onto both the cable and the internal Kevlar strength members, effectively eliminating cable pull-away from the connector body. These connectors are specifically designed for 125um multimode fiber and include black 900um strain relief boots.
Key Features
-
One-Piece Body Design
Simplifies the termination process for faster field assembly. -
Zirconia Ceramic Ferrule
High-precision material ensures stable optical performance and durability. -
Direct Cable Crimp
Provides enhanced mechanical strength by crimping directly onto the cable and Kevlar. -
Pull-Away Prevention
Robust rear design prevents cable separation from the connector. -
Pre-Radius Design
Engineered to facilitate faster polishing times during termination. -
Black Strain Relief Boot
Includes 900um boots for proper fiber bend radius management. -
High Density Compatible
Suitable for standard ST-interface network enclosures and patch panels.
Applications
- Local Area Networks (LAN)
- Wide Area Networks (WAN)
- Data Center Interconnects
- Fiber-to-the-Desk installations
- Premise wiring

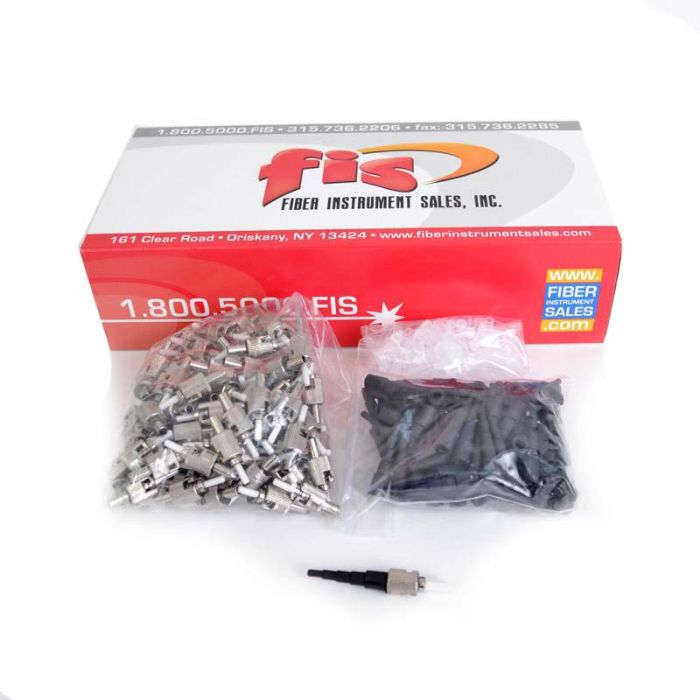

Package Contents
- 100 x ST Multimode Connectors
- 100 x 900um Black Strain Relief Boots
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | ST |
| Fiber Type | Multimode |
| Fiber Size | 125um |
| Ferrule Material | Zirconia Ceramic |
| Boot Type | 900um (Black) |
| Quantity | 100 Pack |
| Construction | One-piece body |
Frequently Asked Questions
Are these connectors suitable for singlemode fiber?
No, this specific part number is designed for multimode 125um fiber applications.
Can I use these with 3.0mm cable?
This specific kit includes 900um boots. The connector body design accommodates 900um to 3.0mm, but you would require different sized boots for larger cable diameters.
Does this connector require epoxy?
Standard ST connectors of this type are typically installed using anaerobic or heat-cure adhesives. Consult the installation guide provided in the download link.
What is the ferrule material?
These connectors utilize high-precision Zirconia ceramic ferrules.
How many come in a pack?
This product is sold as a 100-pack.
