Overview

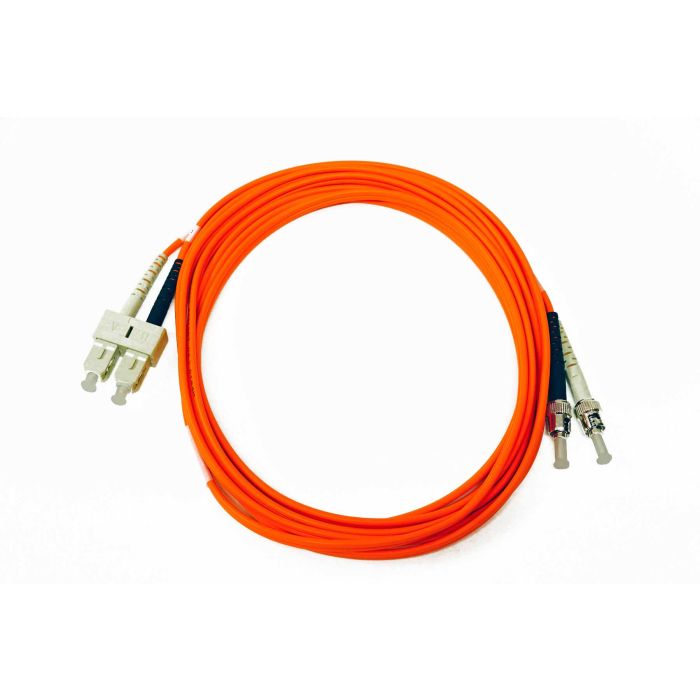

This duplex multimode fiber optic patch cable features ST PC to SC PC connectors, utilizing high-quality 62.5/125µm fiber. Designed for precision and durability, the assembly incorporates ceramic ferrules to ensure reliable signal transmission and consistent optical performance compared to standard composite alternatives.
The cable is constructed with a 3mm duplex jacket, making it suitable for standard networking, telecommunications, and data center environments. With a machine-polished finish, this cable is engineered to meet or exceed rigorous industry standards for loss and reflectance, providing a dependable interconnect for multi-mode fiber systems.
Key Features
-
Ceramic Ferrules
Features high-durability polished ceramic ferrules for enhanced signal integrity and long-term mechanical reliability. -
Machine-Polished Connectors
Precision machine polishing ensures consistent performance and minimizes signal degradation at the connection point. -
62.5/125µm Multimode Fiber
Standard OM1 grade fiber core/cladding configuration compatible with legacy multimode networking hardware. -
Duplex Configuration
Includes two strands of fiber for simultaneous transmit and receive operations in duplex networking applications. -
Industry-Compliant
Tested to meet or exceed fiber optic industry performance standards for insertion and return loss. -
3mm Outer Jacket
Provides robust physical protection for the internal fiber strands in indoor environments.
Applications
- Local Area Networks (LAN)
- Data Center Interconnects
- Telecommunications Equipment
- Fiber Optic Test Equipment Patching
- Premise Distribution Systems
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Duplex Multimode |
| Connector A | ST PC |
| Connector B | SC PC |
| Fiber Size | 62.5/125µm |
| Cable Length | 2 Meters |
| Jacket Diameter | 3mm |
| Typical Insertion Loss | 0.4dB |
| Back Reflection | -25dB |
| Ferrule Material | Ceramic |
Frequently Asked Questions
What does the 62.5/125µm designation mean?
This refers to the diameter of the fiber core (62.5 microns) and the cladding (125 microns), which is standard for OM1 multimode fiber.
Can I use this cable for singlemode applications?
No, this is a multimode cable and is not compatible with singlemode networking equipment.
Are the connectors ceramic or composite?
This cable uses high-quality polished ceramic ferrules for improved reliability.
Is the length customizable?
Yes, custom cable lengths and connector configurations are available upon request.
What is the typical insertion loss for this cable?
The typical insertion loss is 0.4dB.
