Overview

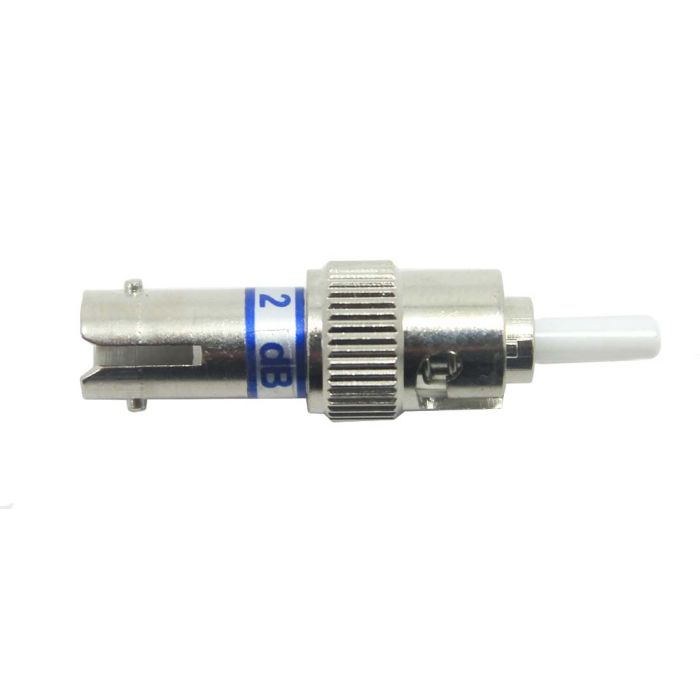

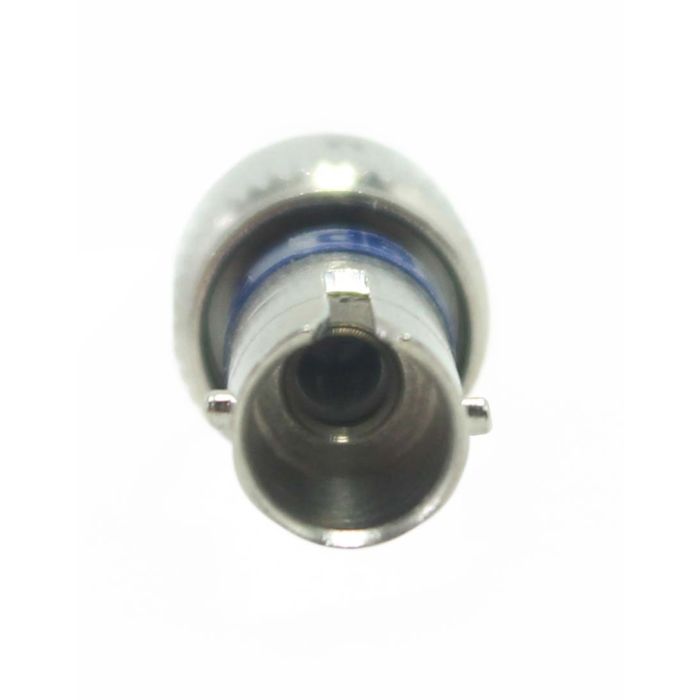

The ST/UPC Male-Female attenuator is designed for precise signal reduction in singlemode fiber optic systems. By integrating doped fiber technology, this device provides a stable and reliable method for lowering signal power levels to prevent receiver saturation in high-power network applications.
This buildout-style attenuator is built for standard 1310nm and 1550nm operating wavelengths, making it a versatile choice for both local area networks and long-haul telecommunications environments. Its male-to-female configuration allows for easy integration directly onto existing ST/UPC adapter ports.
Key Features
-
Doped Fiber Construction
Utilizes specialized doped fiber to ensure consistent and accurate attenuation levels. -
Dual Wavelength Support
Optimized for both 1310nm and 1550nm wavelengths, accommodating common singlemode network standards. -
Buildout Design
Features a convenient male-to-female interface for quick, tool-less installation into existing ST ports. -
Fixed Attenuation Value
Provides a precise 2dB reduction, ensuring stable signal parameters. -
Singlemode Compatibility
Engineered specifically for singlemode fiber infrastructures, maintaining signal integrity. -
Standard UPC Polish
Equipped with an Ultra Physical Contact (UPC) polish to minimize back-reflection.
Applications
- Telecommunications network power level balancing
- Preventing receiver saturation in high-output fiber links
- Optical testing and calibration setups
- Singlemode network link optimization
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | ST |
| Fiber Type | Singlemode |
| Polish | UPC |
| Attenuation | 2dB |
| Operating Wavelength | 1310nm / 1550nm |
| Interface Configuration | Male to Female |
Frequently Asked Questions
Is this attenuator compatible with both 1310nm and 1550nm systems?
Yes, this device is engineered to perform accurately at both standard singlemode operating wavelengths.
Does this unit have a male and female side?
Yes, the attenuator is a male-to-female buildout design, allowing it to plug directly into an ST bulkhead adapter.
What is the attenuation level of this specific model?
This model provides a fixed 2dB of attenuation.
Is this for singlemode or multimode fiber?
This is a singlemode attenuator.
What kind of polish does it have?
This unit uses a standard UPC (Ultra Physical Contact) polish.
