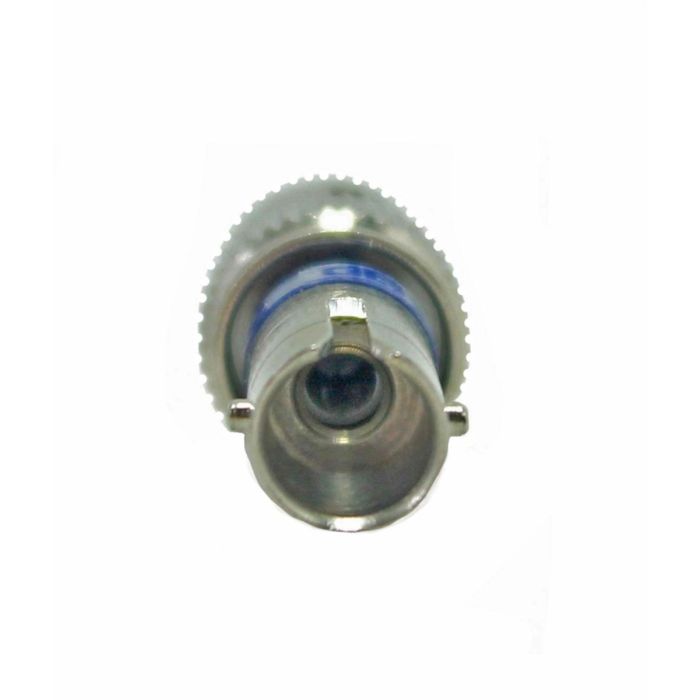

ST UPC Male to Female 1310/1550 Singlemode Attenuator 1dB

Overview

This ST UPC male-to-female attenuator is designed to precisely reduce signal levels in fiber optic networks. By utilizing doped fiber technology, this build-out style device provides consistent and controlled attenuation for signal power management.

The attenuator is optimized for operation at both 1310nm and 1550nm wavelengths, making it suitable for a wide range of singlemode fiber applications. Its male-to-female configuration allows for direct, space-saving connection to existing patch panels, adapters, or equipment ports.

Key Features

• Doped Fiber Technology
  Uses specialized doped fiber to ensure precise and stable signal attenuation across the specified wavelength range.
• Broad Wavelength Compatibility
  Engineered to operate effectively at both 1310nm and 1550nm, supporting standard singlemode network requirements.
• Male-to-Female Design
  Features a convenient build-out form factor that connects directly to existing ST adapters or equipment ports.
• 1dB Increment Calibration
  Available in precise 1dB steps, allowing for granular signal adjustment to meet specific link budget requirements.
• Standard ST UPC Interface
  Utilizes the industry-standard ST connector interface with UPC polish for broad compatibility with existing infrastructure.
• Compact Build-Out Construction
  Provides an efficient solution for attenuation without requiring additional patch cords or bulky hardware.

Applications

• Fiber optic network testing and validation
• Signal power level management
• Telecommunications and CATV distribution systems
• Data center signal balancing

Technical Specifications

Frequently Asked Questions

What does the male-to-female design mean?
The attenuator acts as a feed-through adapter. You connect the male end to an existing adapter or port, and the female end serves as the port to receive your incoming cable.

Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber networks.

Can I use this for wavelengths other than 1310nm or 1550nm?
The attenuator is optimized for 1310nm and 1550nm; use outside of these wavelengths may result in deviations from the stated attenuation value.

What is the polish type?
This device uses a UPC (Ultra Physical Contact) polish.

Are other attenuation values available?
Yes, fixed values are available in 1dB increments ranging from 1dB to 20dB.

Downloads

• Product PDF
