Overview

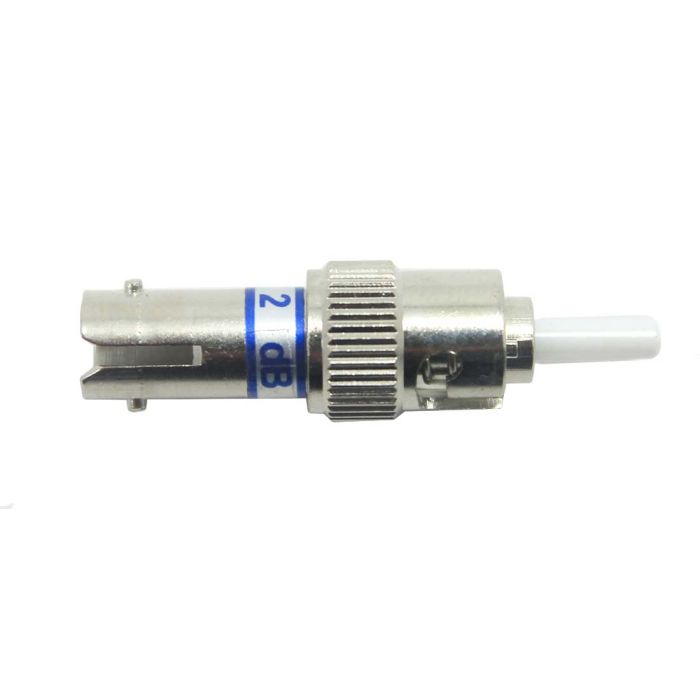

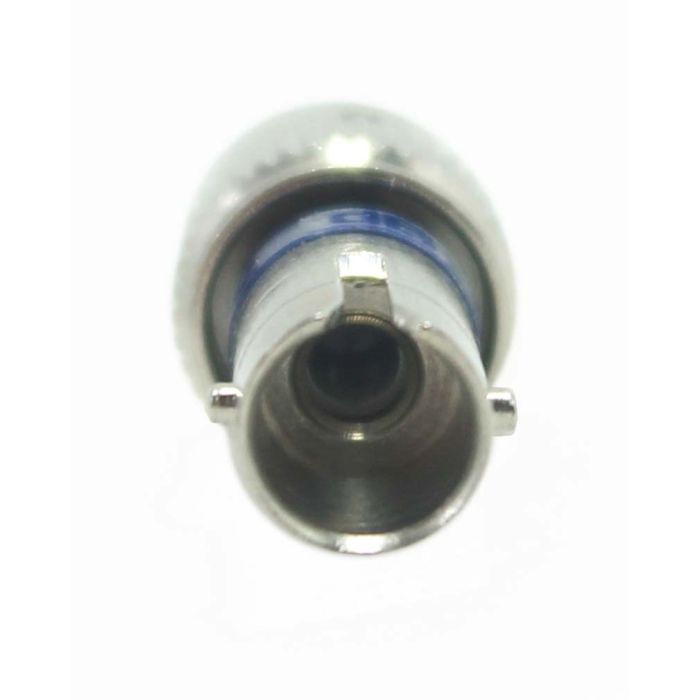

This ST UPC male-to-female attenuator is designed for precise signal reduction in singlemode fiber optic systems. By utilizing doped fiber technology, it ensures stable and consistent performance across both 1310nm and 1550nm operating windows.
The buildout style allows for easy integration into existing network infrastructure by connecting directly between a patch cable and an adapter or equipment port. It is an ideal solution for balancing signal power levels in telecommunications, data centers, and outside plant networks to prevent receiver saturation.
Key Features
-
Doped Fiber Technology
Utilizes high-quality doped fiber to achieve stable, accurate light attenuation. -
Dual Wavelength Support
Optimized for operation at 1310nm and 1550nm, providing versatility across common singlemode applications. -
6dB Fixed Attenuation
Provides a reliable, fixed signal reduction to ensure optimal power levels for network receivers. -
ST UPC Interface
Features industry-standard ST connectors with UPC polish for efficient signal transmission. -
Male-to-Female Configuration
Designed for direct, inline installation, allowing for quick deployment without additional patch cords. -
Consistent Performance
Ensures reliable signal management to prevent equipment damage or data errors caused by high optical power.
Applications
- Telecommunications network power leveling
- Fiber optic test equipment signal attenuation
- Data center link budget management
- Preventing receiver saturation in high-power systems
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F19621A06 |
| Connector Type | ST |
| Configuration | Male-to-Female |
| Fiber Mode | Singlemode |
| Polish | UPC |
| Attenuation Value | 6dB |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
Is this attenuator compatible with both 1310nm and 1550nm systems?
Yes, it is designed for use in both 1310nm and 1550nm operating windows.
Can I use this for multimode fiber?
No, this is specified for singlemode fiber optic applications.
What does the male-to-female configuration mean?
It means one end connects directly into an existing adapter (female port), and the other end acts as a plug (male port) for another cable, enabling simple inline installation.
What polish does this connector use?
It uses a UPC (Ultra Physical Contact) polish.
Are other attenuation levels available?
Yes, fixed attenuation values are generally available in 1dB increments from 1dB to 20dB.
