Overview

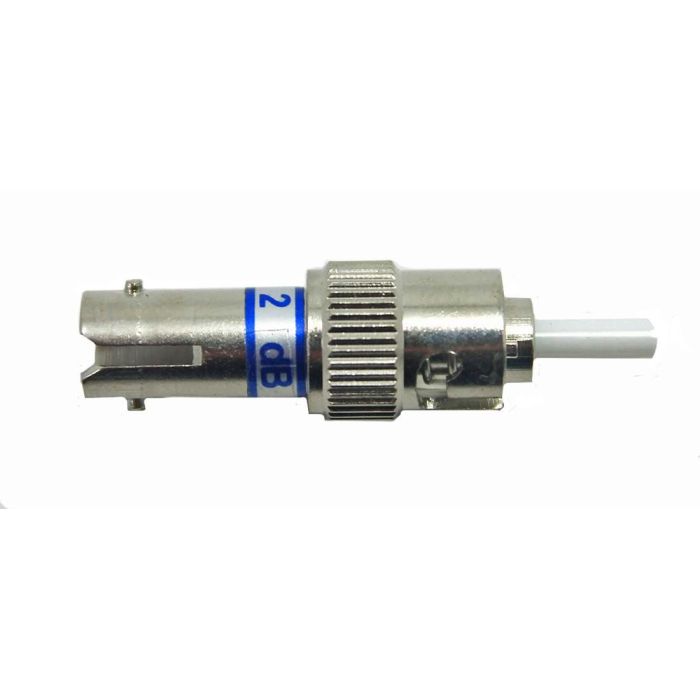

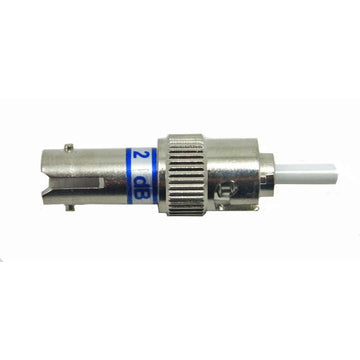

The ST/UPC Multimode Male-Female Attenuator is a precision optical component designed to reduce the power level of a fiber optic signal by a calibrated amount. This device is specifically engineered for 62.5/125µm multimode fiber systems, ensuring accurate signal attenuation for testing or link power balancing applications.
Constructed with a rugged ST-style housing, this attenuator provides a stable physical connection between existing patch cables and equipment ports. It is suitable for deployment in data centers, telecommunications networks, and laboratory testing environments where signal strength management is required to prevent receiver saturation.
Key Features
-
Fixed Attenuation Level
Provides a consistent 5dB reduction, ensuring predictable signal loss in optical circuits. -
Male-to-Female Configuration
Allows for seamless integration into existing ST infrastructure without requiring additional patch cords. -
Multimode Compatibility
Optimized for 62.5µm core multimode fiber, maintaining signal integrity in legacy networking environments. -
ST Connector Interface
Features the standard ST bayonet-style coupling for secure, reliable attachment to equipment interfaces. -
UPC Polish
Utilizes Ultra Physical Contact (UPC) polishing to minimize back reflection in network links. -
Compact Form Factor
Small physical size allows for efficient use of space within rack-mount enclosures and patch panels.
Applications
- Telecommunication network power leveling
- Data center link power testing
- Preventing receiver saturation in high-power systems
- Optical laboratory test setups
Technical Specifications
| Specification | Value |
|---|---|
| Model | ST/UPC 62.5 MM |
| Fiber Type | Multimode (62.5µm) |
| Attenuation Value | 5dB |
| Connector Type | ST/UPC |
| Gender | Male to Female |
| Operating Wavelength | 850 nm |
Frequently Asked Questions
What does the 5dB attenuation mean?
It indicates that the device will reduce the optical signal power passing through it by 5 decibels.
Can this be used with singlemode fiber?
No, this device is specifically designed for 62.5µm multimode fiber and will not perform correctly with singlemode systems.
Is this a male-to-male or male-to-female device?
This is a male-to-female attenuator, designed to plug into a female adapter and accept a male connector plug.
What is the primary wavelength for this unit?
This attenuator is optimized for operation at 850 nm.
Does it use a standard ST connection?
Yes, it utilizes the standard ST bayonet-style connector.
