Overview

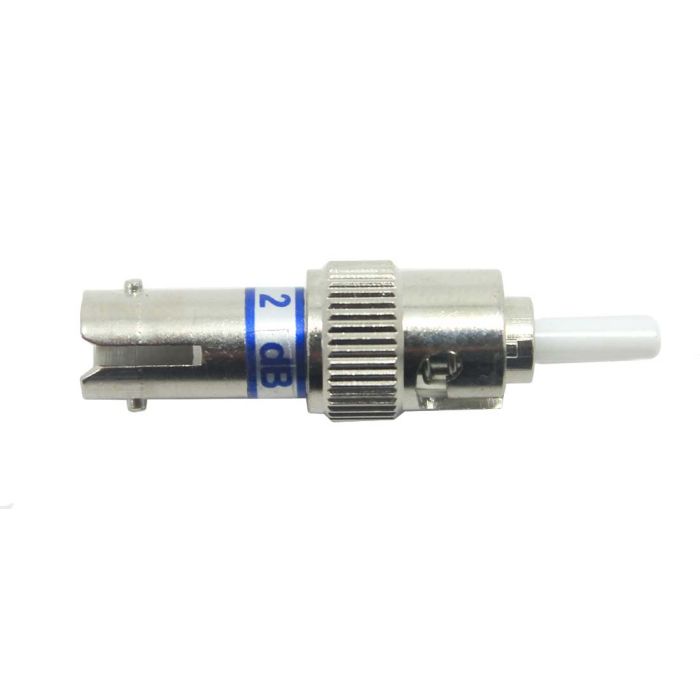

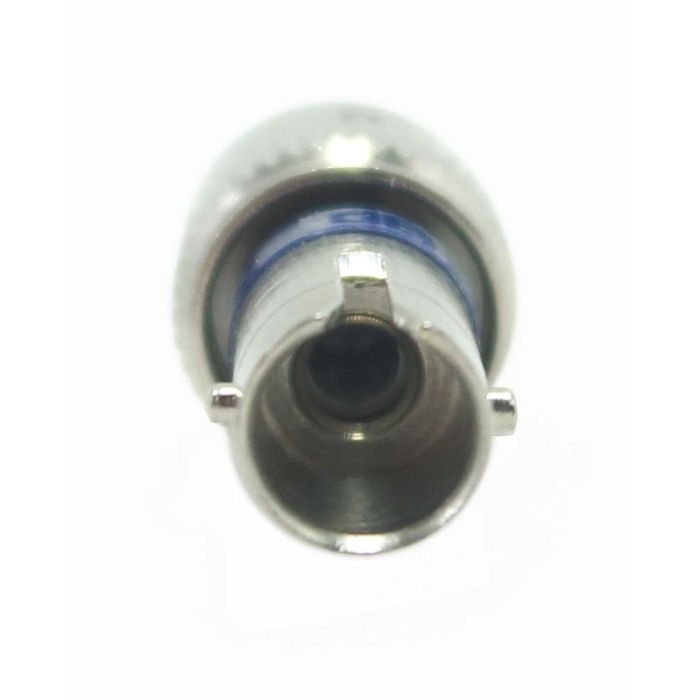

The ST/UPC Singlemode Male to Female Attenuator is a precision-engineered component designed to reduce the optical power level in fiber optic transmission systems. By utilizing doped fiber technology, this attenuator provides stable and reliable signal reduction, protecting downstream equipment from receiver saturation.
This build-out style attenuator features a convenient male-to-female interface, allowing for direct integration into existing ST-terminated fiber optic patch panels or equipment ports. It is optimized for performance across both 1310nm and 1550nm operating wavelengths, making it a versatile addition to standard telecommunications and data center environments.
Key Features
-
Doped Fiber Technology
Utilizes high-quality doped fiber to ensure stable and consistent optical attenuation. -
Dual Wavelength Optimization
Performance is calibrated for both 1310nm and 1550nm, supporting standard singlemode network requirements. -
Male-to-Female Configuration
Allows for direct connection to existing ST hardware without additional patch cables. -
Compact Form Factor
Designed for space-constrained rack mount or distribution environments. -
Fixed Attenuation Value
Provides a precise 3dB signal reduction for predictable network performance. -
Easy Integration
Compatible with standard ST/UPC interface types for rapid installation.
Applications
- Telecommunications network power level balancing
- Data center fiber optic equipment protection
- Fiber optic test and measurement setups
- Signal conditioning for optical transceivers
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | ST/UPC |
| Gender | Male to Female |
| Attenuation | 3dB |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
Can this attenuator be used with multimode fiber?
No, this model is designed specifically for singlemode fiber optic applications.
Does the attenuator work at other wavelengths?
It is optimized for 1310nm and 1550nm. Performance at other wavelengths may not be consistent or guaranteed.
Is the attenuation fixed or adjustable?
This is a fixed attenuation device set at 3dB.
What is the connection type?
This is an ST connector with a UPC (Ultra Physical Contact) polish.
Can this be connected directly to a piece of equipment?
Yes, the male-to-female configuration allows for direct connection to equipment ports or existing bulkhead adapters.
