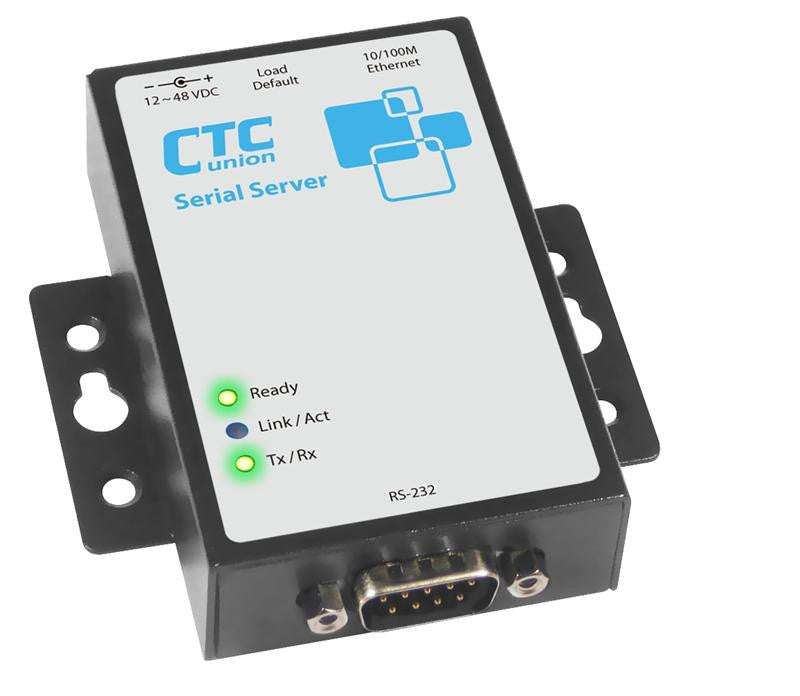

STE-100A-232 Serial RS-232 to Ethernet IP Server
Move your mouse over image or click to enlarge

STE-100A-232 Serial RS-232 to Ethernet IP Server

CTC Union Part No.: STE-100A-232

  • $ 160.00 or

The STE-100A-232 serial terminal server (access server) allows RS-232 asynchronous devices to connect over Ethernet (10/100Base-TX) using TCP/IP protocol. This small powerful device allows serial only managed devices to be seen and controlled over Internet. STE-100A-232 can be managed either from serial port or RJ-45 Ethernet side. Serial port is DTE, which allows direct connection to a DCE device (like modem). For connection to a DTE also equipment (like PC) a null-modem (cross-over) cable is required.

Features of STE-100A-232 terminal server:

  • Complete TCP/IP stack implementation
  • Supports TCP Server, TCP client, UDP, Virtual Com Mode, Winsock Mode, API
  • Configuration by web browser
  • Low cost and compact design, good for automation applications: 85 x 53 x 21 mm
  • Works in server or client mode
  • Provides serial connection over Ethernet

Technical specifications:

  • Connectors: EIA RS-232 DB9 male connector and RJ-45 10/100Base-TX Ethernet connector
  • Support for DHCP, HTTP, ICMP, ARP, IP, UDP, TCP
  • Handshaking: RTS/CTS, XON/XOFF, none
  • Protocols: TCP/IP, ARP, ICMP
  • Management: Web based, Remote Access, Firmware upgrade support
  • LEDs: Ready, Link/ACT, TD/ RD
  • Power: External 12V AC(AC 100-240V adapter included in box)
  • Installation: DIN-Rail support, wall mounting support
  • Temperature: 0-60§C (Operating), -20 - 80§C (Storage)
  • Humidity: 5%-90% non-condensing
  • Dimensions: 53mm x 85mm x 21mm
  • Weight: 90g

Product Sheet:
